Body Panels and Closures / Closures / Door Structure / DA-RM-02A052-05-008 - Replace Door
Preparation work
1.
2.
3.
Care Point: Lower the door glass 150mm from fully closed before you disconnect the battery.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
Replace Door
1.

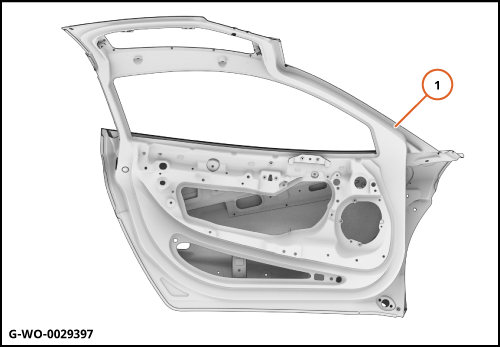

Replace the door (1).


Care Point:
Do a check of the panel to see if the hem joints are sealed. You must seal the hem joints before you paint the panel.
Care Point:
If the hem joints are sealed you can continue the paint process and then install the components in reverse order.

2.

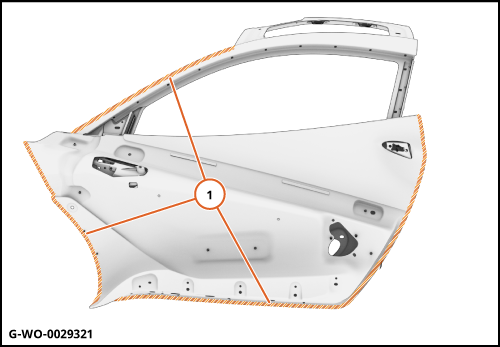

Apply protection to the areas shown (1).


Care Point:
Make sure that you do not put tape or sealant on the top surface.
Care Point:
Make sure that the hem edge is fully taped.
Care Point:
Make sure that the tape is visually satisfactory.
Care Point:
When you apply cleaner, obey the manufacturer's flash times.

3.

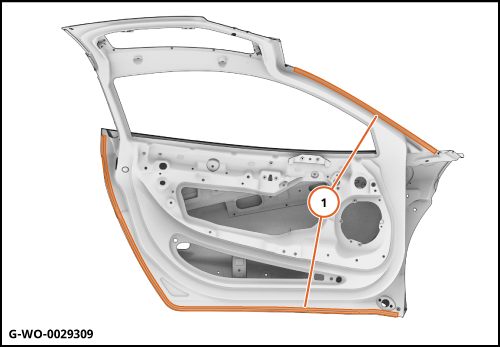

Clean the surfaces (1). Use Loctite 7064 Cleaner.
Put a continuous strip of 3M 2205 12mm Seam Sealer Tape on the areas shown (1).


Care Point:
Use a spatula to smooth the sealant over the hem.
Care Point:
Make sure that you fully seal the hem.
Care Point:
When you apply sealant, obey the manufacturer's flash times.

4.

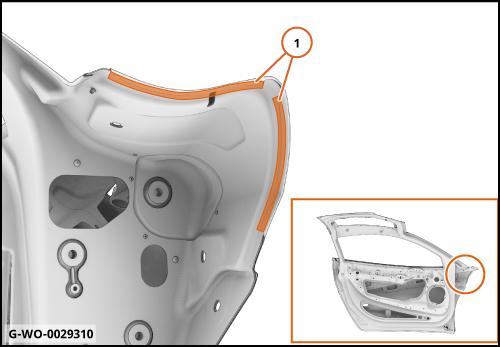

Clean the surfaces (1). Use Loctite 7064 Cleaner.
Put a continuous strip of 3M 2205 12mm Seam Sealer Tape on the areas shown (1).


Care Point:
Use a spatula to smooth the sealant over the hem.
Care Point:
Make sure that you fully seal the hem.
Care Point:
When you apply sealant, obey the manufacturer's flash times.

5.

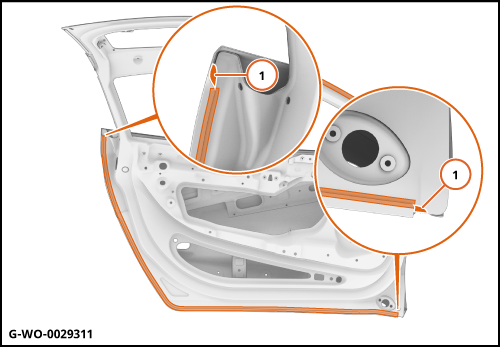

Apply sealant to the areas shown (1). The sealants that follow are permitted: Henkel Teroson MS9120, 3M 08684 Polyurethane Seam Sealer, Sika – Sikaflex 215, LORD – Versilok 500VLC.
Remove the unwanted sealant.


Care Point:
Use a spatula to smooth the sealant over the hem.
Care Point:
Make sure that you fully seal the hem.
Care Point:
When you apply sealant, obey the manufacturer's flash times.

6.

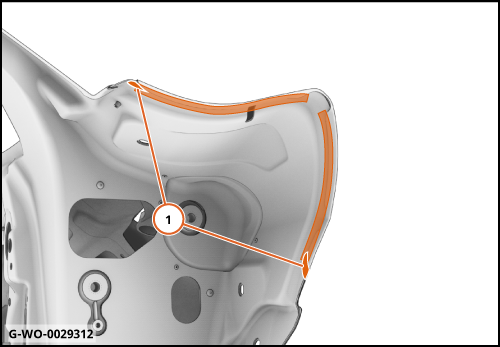

Apply sealant to the areas shown (1). The sealants that follow are permitted: Henkel Teroson MS9120, 3M 08684 Polyurethane Seam Sealer, Sika – Sikaflex 215, LORD – Versilok 500VLC.
Remove the unwanted sealant.


Care Point:
Use a spatula to smooth the sealant over the hem.
Care Point:
Make sure that you fully seal the hem.
Care Point:
When you apply sealant, obey the manufacturer's flash times.

7.

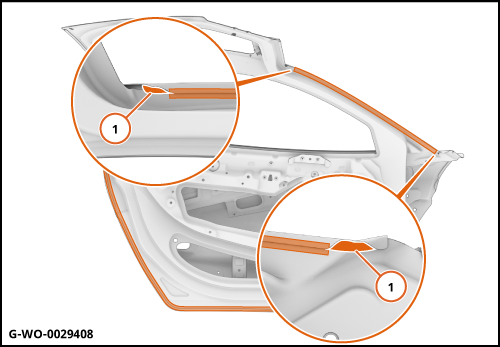

Apply sealant to the areas shown (1). The sealants that follow are permitted: Henkel Teroson MS9120, 3M 08684 Polyurethane Seam Sealer, Sika – Sikaflex 215, LORD – Versilok 500VLC.
Remove the unwanted sealant.

8.
Remove the protection and continue the paint process.

9.
Install the remaining components in reverse order.
