          DA-RM-08N001-12-001 - Remove/Install trim - Door
      Interior Restraints
    Accessories
    PDI/Service/Track/Technical Sheets
    Paint Technical Data Sheets
    Wiring Schematics
  Customer Service
       Special advice          Tools/Equipment           Fluids, lubricants, adhesive
Instructions
Interior / Interior Systems / Door Casing / DA-RM-08N001-12-001 - Remove/Install trim - Door
Preparation work
1.
2.
3.
4.
Remove trim - Door

Care Point:
Head air bag located in door.
Apply protective tape where required.

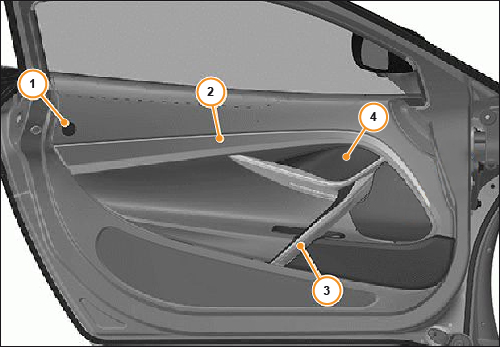

1.
Remove airbag badge (1).

2.
Remove door finisher trim (2).

3.
Remove door pull trim (3).


Care Point:
Apply tape to protect trim.

4.
Remove door speaker grille (4).


Care Point:
Vehicles fitted with ambient lighting only, complete step 5.

5.
Disconnect electrical connector (5).


Care Point:
Open the door pocket to access the lower bolts.

6.
Remove bolts (6). (M6x16) 6 Nm

7.
Partially remove the door trim.


Care Point:
Vehicles fitted with ambient lighting only, complete step 8.
Care Point:
Electrical connector located on the rear edge of door trim.

8.
Disconnect the electrical connector (7).

9.
Remove door trim.

Install trim - Door
1.
Install components in reverse order.

2.
Check functionality of switch packs and ambient lighting (where fitted).



   Note
