Remove access hatch - Luggage bin
| | | Care Point: | Make sure no items such as chargers or accessories are plugged into the 12V socket.
|

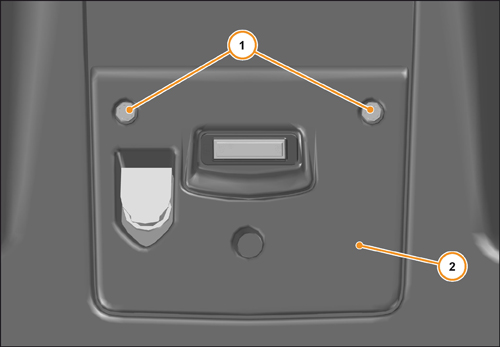

| | | 1. | Release clips (1).
| | | 2. | Partially remove access hatch (2).
| | | | | Care Point: | If removing access hatch to disconnect 12V battery, do not proceed.
|
| Care Point: | Proceed only if removing luggage bin.
|
| | | 3. | Disconnect 12V socket.
| | | 4. | Disconnect luggage bin lamp.
| | | | | Care Point: | Federal vehicles only.
|
| | | 5. | Disconnect emergency release button.
| | |
|
Install access hatch - Luggage bin
| | | Care Point: | If replacing access hatch, swap components over to new part.
|
| Care Point: | Check condition of foam seal, replace if required.
|
| | | 1. | Install components in reverse order.
| | | 2. | Check functionality of fitted components.
| | |
