Body Panels and Closures / Closures / Door Structure / DA-RM-02A052-05-010 - Remove/Install Support - Door - Secondary
Remove Support - Door - Secondary
1.

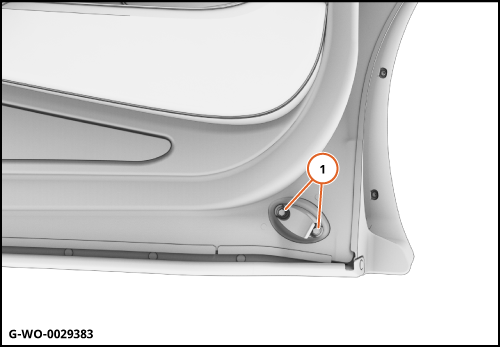

Remove the bolts (1) (M6x16) 4 Nm.
Remove the support.

Install Support - Door - Secondary
1.
Install the component in reverse order.



   Note
