720S

1.	DA-RM-03A071-07-002 - Remove/Install access hatch - Luggage bin
2.	Care Point: Lower the Glass - Door 150mm from the upper edge of the door frame before disconnecting the battery. DA-RM-07M003-00-001 - Disconnect/Connect Li-ion battery
3.	DA-RM-07M002-01-001 - Remove/Install switch - Door release / Window control
4.	DA-RM-07M002-01-009 - Remove/Install control panel - Auxiliary
5.	DA-RM-08N001-12-001 - Remove/Install trim - Door
6.	Care Point: Remove the upper loudspeaker only. DA-RM-07M021-02-003 - Remove/Install loudspeaker - Door
7.	Care Point: Disconnect only. DA-RM-07M002-05-001 - Remove/Install sensor - Occupant Restraint - Pressure
8.	Care Point: Disconnect only. DA-RM-07M002-02-003 - Remove/Install control unit - Door
9.	DA-RM-02A056-04-001- Remove/Install glass - Door
10.	DA-RM-02A052-18-005 - Remove/Install Seal - Door waist - Inner
11.	DA-RM-02A052-18-004 - Remove/Install Seal - Door waist - Outer
12.	DA-RM-02A056-01-002 - Remove/Install Panel - Cheater
13.	DA-RM-02A052-18-006 - Remove/Install Seal - Primary - Door glass

Remove Seal carrier - Cantrail finisher

Care Point:

Risk of damage. Be careful with easily damaged parts and trim.

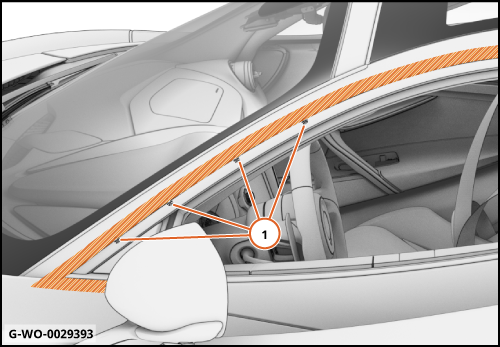

Apply protection to the area shown (1).

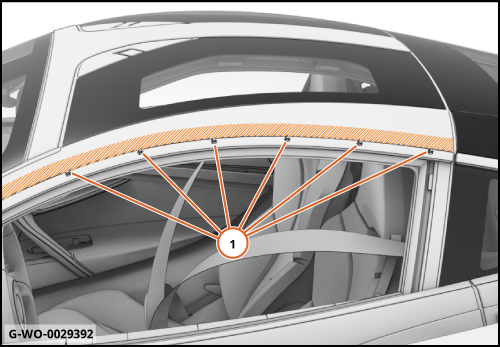

Remove the screws (1) 5 Nm.

3.	Remove the screws (1) 5 Nm.

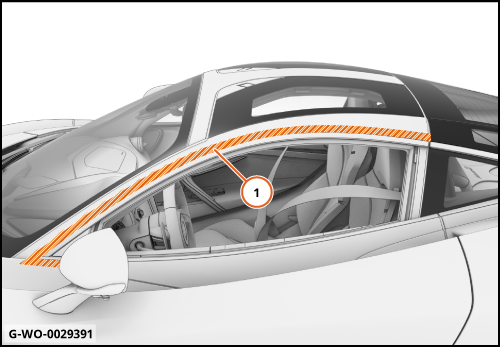

4.	Remove the seal carrier.

Install Seal carrier - Cantrail finisher

Install the components in reverse order.

V. 1.8
