Remove Seal - Door waist - Outer

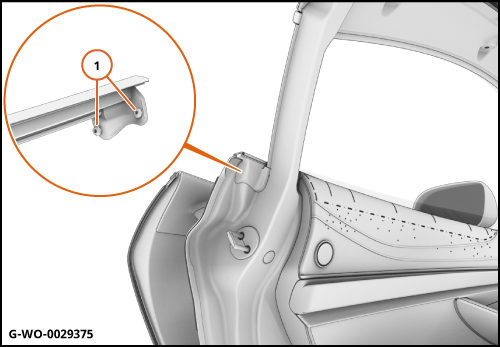

| 1. | Disengage the clips (1).
| | |
|

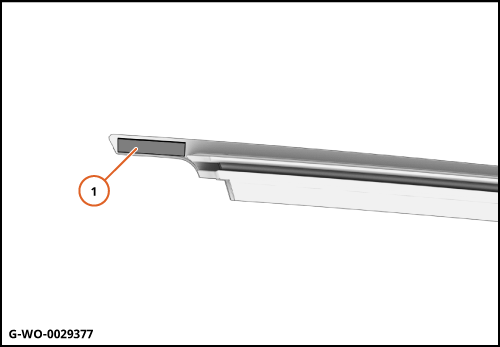

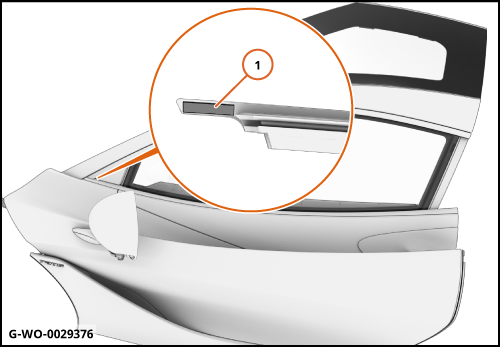

| 2. | Break the bond of the adhesive tape (1).
Remove the seal.
| | |
|
/Install Seal - Door waist - Outer
| 1. | Remove the remaining adhesive tape from the door bond path.
| | |
|
| | | Care Point: | Do step 2 if you install a used seal.
|
| Care Point: | When you apply cleaner, obey the manufacturer's flash times.
|
| | | 2. | Remove the remaining adhesive tape from the seal adhesive tape bond path.
| | | 3. | | | |
|
| 4. | Remove the adhesive tape backing and install the seal in reverse order.

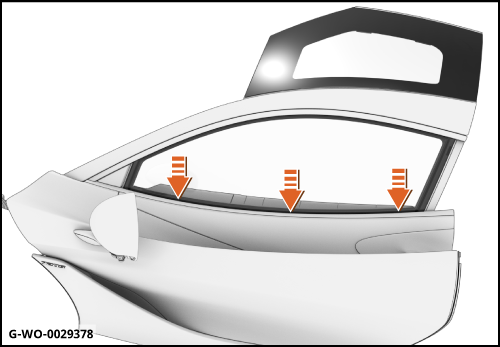

Push the seal firmly onto the door panel waist flange in the direction shown.
| | |
|
