Preparation work
| 1. | |
| 2. | Care Point: Lower the Glass - Door 150mm from the upper edge of the door frame before disconnecting the battery.
|
| 3. | |
| 4. | |
| 5. | |
| 6. | Care Point: Remove the upper loudspeaker only.
|
| 7. | Care Point: Disconnect only.
|
| 8. | Care Point: Disconnect only.
|
| 9. | |
| 10. | |
| 11. | |
| 12. | |
| 13. | |
Remove Finisher - B post - Door

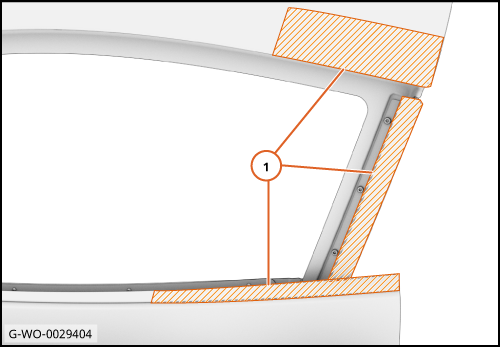

| 1. | Apply protection to the area shown (1).
| | |
|

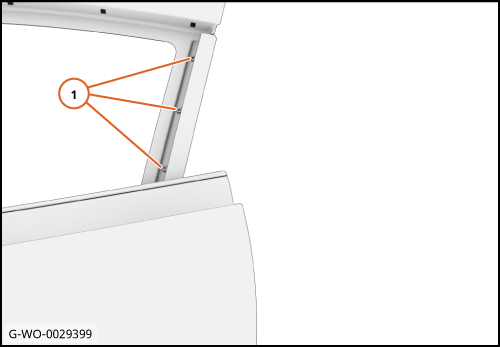

| 2. | Remove the bolts (1) 5 Nm.
| | |
|
| | | Care Point: | Record the location of the finisher.
|

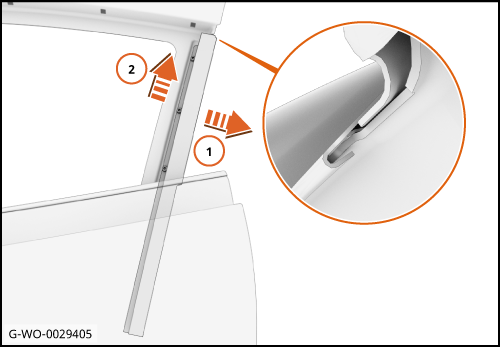

| | | 3. | Disengage the finisher in the direction shown (1).
Remove the finisher (2).
| | |
|
Install Finisher - B post - Door
| 1. | Install the components in reverse order.
| | |
