Prepare vehicle for windshield
| | | Care Point: | A glazing adhesive kit Sika OEM Kit is available to order for all below glazing procedures.
The kit contains Sika primer 206 G+P, Sika Activator 1866 and Sika OEM glass adhesive.
|
| Care Point: | Risk of component damage - Cover interior trim before applying fluids.
|
| Care Point: | Take care not to get any fluids in or on the windshield antenna connector.
|
| Care Point: | Flash time of 1 minute (leave minimum time between application and wiping off).
|

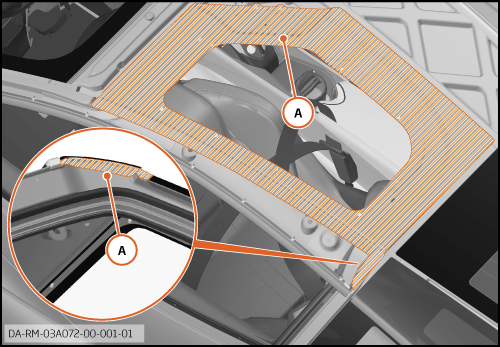

| | | 1. | Clean bond area (A) on vehicle with Betaclean 3900 and allow to flash dry.
| | | | | Care Point: | Flash time of 10 minutes (above 15°C), 30 minutes (below 15°C).
|
| | | 2. | | | | | | Care Point: | Flash time of 10 minutes (above 15°C), 30 minutes (below 15°C).
|
| | | 3. | | | |
|
Prepare vehicle for rear quarter glass
| | | Care Point: | Risk of component damage - Cover interior trim before applying fluids.
|
| Care Point: | Flash time of 1 minute (leave minimum time between application and wiping off).
|
| | | 1. | Clean bond area (A) on vehicle with Betaclean 3900 and allow to flash dry.
| | | | | Care Point: | Flash time of 10 minutes (above 15°C), 30 minutes (below 15°C).
|
| | | 2. | | | | | | Care Point: | Flash time of 10 minutes (above 15°C), 30 minutes (below 15°C).
|
| | | 3. | | | |
|
Prepare vehicle for tailgate glass - Fixed
| | | Care Point: | Risk of component damage - Cover interior trim before applying fluids.
|
| Care Point: | Flash time of 1 minute (leave minimum time between application and wiping off).
|
| | | 1. | Clean bond area (A) on vehicle with Betaclean 3900 and allow to flash dry.
| | | | | Care Point: | Flash time of 10 minutes (above 15°C), 30 minutes (below 15°C).
|
| | | 2. | | | | | | Care Point: | Flash time of 10 minutes (above 15°C), 30 minutes (below 15°C).
|
| | | 3. | | | |
|
Prepare vehicle for door glass - Upper
| | | Care Point: | Risk of component damage - Cover interior trim before applying fluids.
|
| Care Point: | Flash time of 1 minute (leave minimum time between application and wiping off).
|
| Care Point: | Clean entire area shown despite type of panel or glass fitted to vehicle.
|
| | | 1. | Clean bond area (A) on vehicle with Betaclean 3900 and allow to flash dry.
| | | | | Care Point: | Flash time of 10 minutes (above 15°C), 30 minutes (below 15°C).
|
| | | 2. | | | | | | Care Point: | Flash time of 10 minutes (above 15°C), 30 minutes (below 15°C).
|
| | | 3. | | | |
|
