       Special advice          Tools/Equipment           Fluids, lubricants, adhesive
Instructions
Electrical / Infotainment / Sound System / DA-RM-07M021-02-006 - Remove/Install Bracket - Speaker
Preparation work
1.
2.
3.
4.
5.
6.
Remove Bracket - Speaker
1.

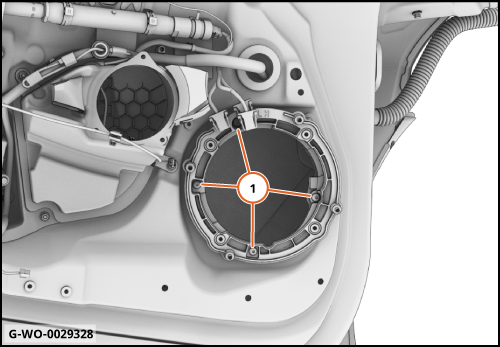

Remove the bolts (1) (M5x20) 2.5 Nm.
Remove the bracket.

Install Bracket - Speaker
1.
Install the components in reverse order.



   Note
