Interior / Interior Restraints / Airbag - Head Curtain / DA-RM-08N002-02-002 - Remove/Install Cradle - Bracket - Airbag
Preparation work
1.
2.
3.
4.
5.
6.
Remove Cradle - Bracket - Airbag

Care Point:
Refer to the installation procedure for the torque sequence.

1.

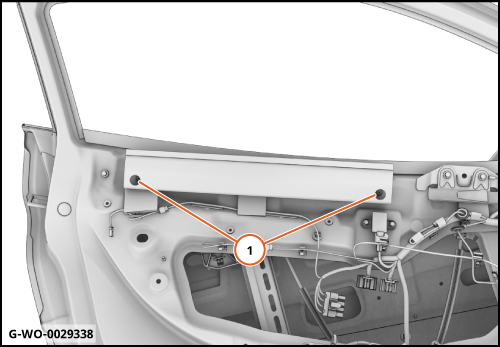

Remove the bolts (1) (M6x16) 8 Nm.
Remove the bracket.

Install Cradle - Bracket - Airbag
1.
Put the bracket into its installation position.
Loosely install the bolts.

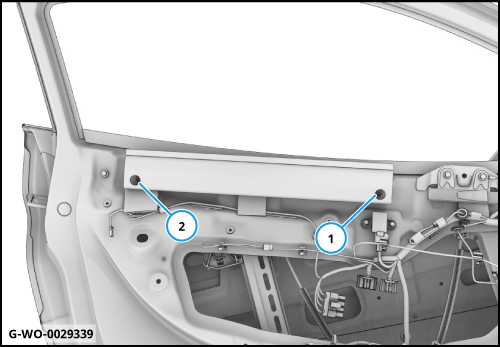

Torque the bolts in sequence 1 and 2.

2.
Install the remaining components in reverse order.



   Note
