720S

1.	DA-RM-01A001-00-001 - Secure/Lift vehicle on platform
2.	DA-RM-03A071-07-002 - Remove/Install access hatch - Luggage bin
3.	Care Point: Depressurise suspension system before disconnecting battery. DA-RM-04B003-00-001 - Fill/Bleed fluid - Suspension system
4.	Care Point: Make sure EPB calipers are in service mode before disconnecting battery. DA-RM-07M003-00-001 - Disconnect/Connect Li-ion battery
5.	DA-RM-04L001-00-001 - Drain/Fill fluid - Coolant
6.	Care Point: Only drain transmission oil if replacing gearbox. DA-RM-05G001-00-001 - Drain/fill fluid - Transmission oil
7.	Care Point: Remove both sides. DA-RM-04B005-01-001 - Remove/Install wheel - Rear
8.	Care Point: Remove both sides. DA-RM-03A076-02-001 - Remove/Install wheel arch liner - Rear
9.	DA-RM-01A004-02-001 - Remove/Install floor panel - Engine
10.	Care Point: Remove both sides. DA-RM-03A075-05-002 - Remove/Install floor panel - Rear extension
11.	DA-RM-03A075-05-001 - Remove/Install floor panel - Diffuser
12.	DA-RM-01A004-02-002 - Remove/Install floor panel - Transmission
13.	DA-RM-01A003-01-002 - Remove/Install crossbeam - Transmission floor
14.	DA-RM-02A051-08-002 - Remove/Install panel - Rear deck vent
15.	DA-RM-02A051-08-001 - Remove/Install panel - Service Cover
16.	DA-RM-02A051-08-003 - Remove/Install panel - Engine bay cover
17.	DA-RM-02A053-03-001 - Remove/Install panel - Airbrake
18.	Care Point: Remove both sides. DA-RM-02A051-03-004 - Remove/Install panel - Side duct finisher
19.	Care Point: Remove both sides. DA-RM-02A051-03-003 - Remove/Install panel - Dirty air duct
20.	Care Point: Remove both sides. DA-RM-02A051-03-002 - Remove/Install bodyside - Lower
21.	Care Point: Remove both sides. DA-RM-02A051-03-005 - Remove/Install panel - Aero bridge
22.	Care Point: Remove both sides. DA-RM-02A051-03-001 - Remove/Install bodyside - Upper - Left
23.	DA-RM-03A071-10-001 - Remove/Install bumper assembly - Rear
24.	DA-RM-05E001-02-002 - Remove/Install heatshield - Muffler - Upper
25.	DA-RM-05H001-02-001 - Remove/Install muffler
26.	DA-RM-05E001-02-003 - Remove/Install heatshield - Muffler - Lower
27.	DA-RM-05E001-02-004 - Remove/Install heatshield - Airguide
28.	DA-RM-02A051-08-004 - Remove/Install heatshield - Deck vent rear
29.	DA-RM-05F002-03-001 - Remove/Install water charge air cooler (WCAC)
30.	Care Point: Remove both sides. DA-RM-05H001-01-001 - Remove/Install catalytic converter and link pipe assembly - Left
31.	Care Point: Remove both sides. DA-RM-05F002-01-004 Remove/Install duct - airbox to clean air duct
32.	DA-RM-05F001-03-001 - Remove/Install pump - Secondary air
33.	DA-RM-01A003-02-002 - Remove/Install bumper beam - Rear
34.	Care Point: Remove both sides. DA-RM-04C002-03-001 - Remove/Install brake disc cooling duct - Rear
35.	Care Point: Remove both sides. Detach caliper from upright only, do not disconnect fluid hose. DA-RM-04C002-02-001 - Remove/Install brake caliper - Rear
36.	Care Point: Remove both sides. DA-RM-04C004-01-001 - Remove/Install brake caliper - Parking
37.	Care Point: Remove both sides. DA-RM-04C002-01-001 - Remove/Install brake disc - Rear
38.	DA-RM-05F005-01-001 - Remove/Install starter motor
39.	DA-RM-05G001-01-001 - Remove/Install Dual Clutch Transmission (DCT)
40.	DA-RM-05F005-05-001 - Remove/Install driveline damper

WARNING!
Possible fluid spills from vehicle systems during repairs or maintenance. Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours. Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.

Remove crank seal rear

Care Point:

Use a suitable container to catch the excess fluid.

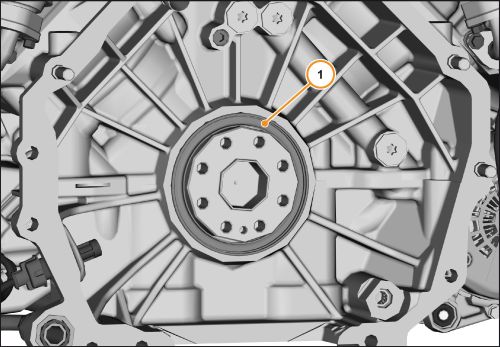

Remove crank seal rear (1) with a suitable puller.

Install crank seal rear

Care Point:

Do not apply any oil or grease to the crank seal rear.

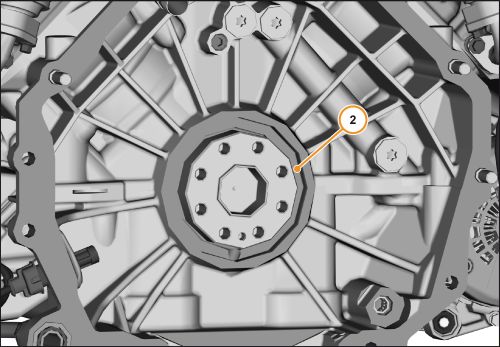

Clean crank housing bore (2) and end of crank.

Check crank housing bore (2) for sharp edges.

Care Point:

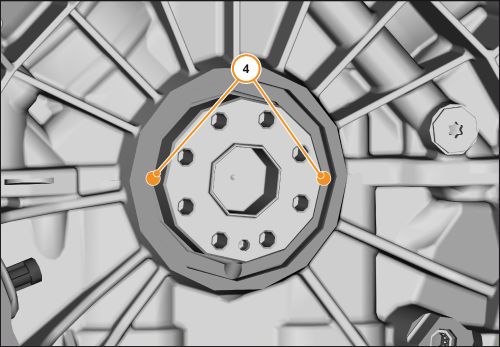

Apply RTV (Room Temperature Vulcanisation) silicone (4) before fitting expander tool.

Apply RTV silicone (4). Three Bond 1217F-GM

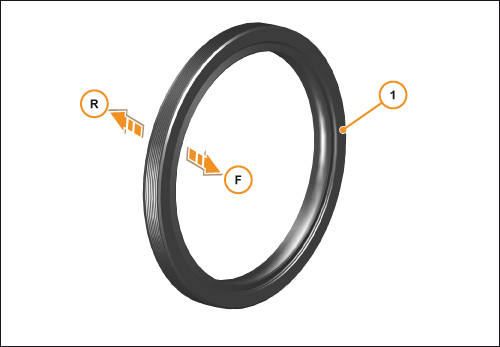

Care Point:

R: Rear side to engine.

F: Front side to transmission.

Make sure crank seal rear (1) is placed in right orientation.

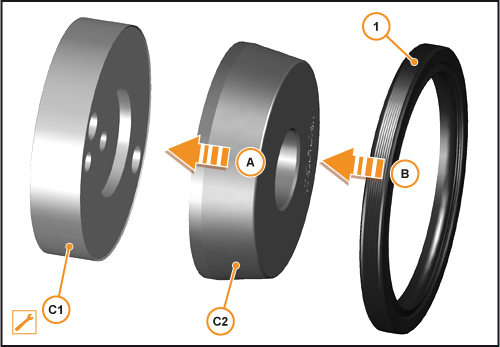

5.	Put expander tool (C2) on fitting tool (C1) in direction (A). Crankshaft Seal Rear - Engine
6.	Attach crank seal rear (1) over expander tool (C2) in direction (B) until located on fitting tool (C1).
7.	Remove expander tool (C2).

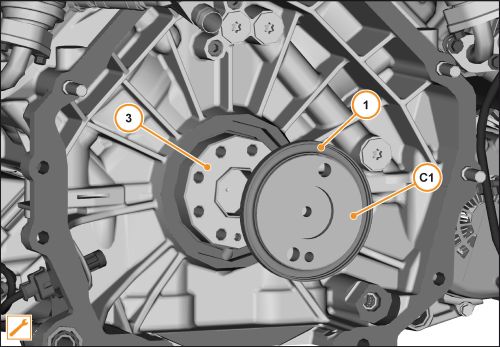

Attach fitting tool (C1) with crank seal rear (1) on crankshaft (3).

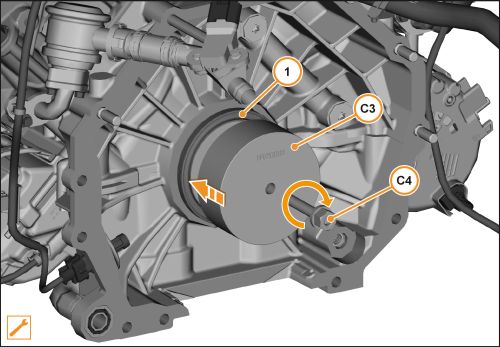

9.	Align pressure pad (C3) on crank seal rear (1).
10.	Screw bolt (C4) and press crank seal rear (1) home.
11.	Remove all special tools.
12.	Check the seal is fitted correctly.
13.	Make sure area around seal is clean and free from dirt and debris to avoid contamination.
14.	Install components in reverse order.
15.	Check engine for leaks.
