       Special advice          Tools/Equipment           Fluids, lubricants, adhesive
Instructions
Body Structures / Rear Structures / Rear Frame / DA-RM-01A003-01-002 - Remove/Install crossbeam - Transmission floor
Preparation work
1.
2.
3.
Remove crossbeam - Transmission floor
1.

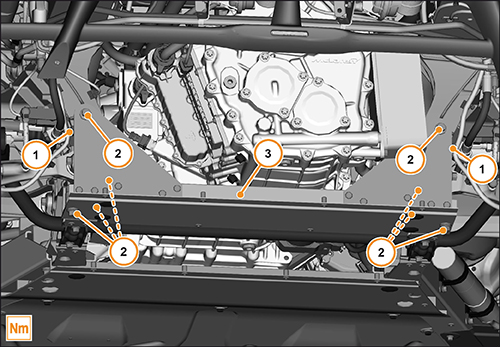

Detach harness clips (1).

2.
Remove bolts (2). (M10x30) 75 Nm

3.
Remove transmission floor crossbeam (3).

Install crossbeam - Transmission floor
1.
Install components in reverse order.



   Note
