Body Structures / Floors / Rear Structural Floors / DA-RM-01A004-02-002 - Remove/Install floor panel - Transmission
Preparation work
1.
Remove floor panel - Transmission
1.
Remove bolts (1).(M6x20) 9 Nm

2.
Remove the floor panel - Transmission.

Care Point:
Only hand tighten the fixings at this stage.
Care Point:
Make sure the transmission panel is correctly aligned.
Install floor panel - Transmission
1.

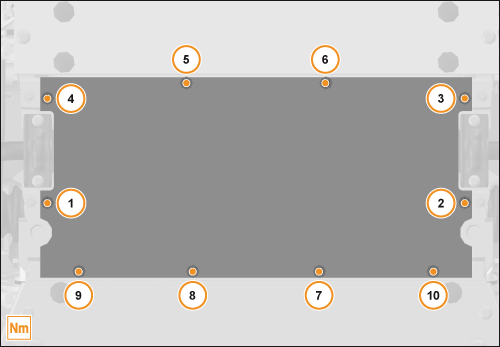

Install the floor - panel - Engine and do the tightening torque sequence.

2.
Install components in reverse order.
