Body Panels and Closures / Panels / Bodyside Assembled / DA-RM-02A051-03-005 - Remove/Install panel - Aero bridge
Preparation work
1.
2.
3.
4.
5.
Remove Aero bridge - Inner

Care Point:
Risk of paint damage. Protect surrounding area.
Care Point:
Aero bridge is in 3 sections.
Care Point:
Work from underneath to access clips.

1.
Remove bolt (1).(M6x12) 5 Nm

2.
Detach clips and remove inner aero bridge (2).

Remove Aero bridge - Outer

Care Point:
Work from underneath to access clips.

1.
Remove bolts (3).(M6x12) 5 Nm

2.

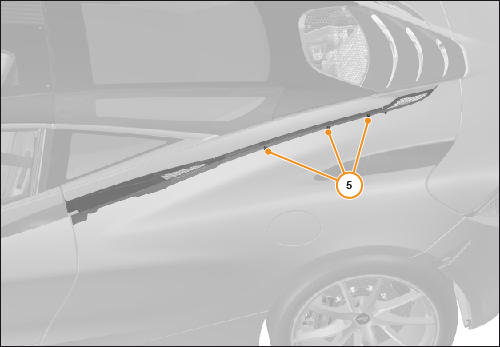

Detach clips (5) and remove outer aero bridge (4).

Remove Aero bridge - Rear

Care Point:
Work from underneath to access clips.
Care Point:
Rear aero bridge has additional clipping features in the part itself.

1.

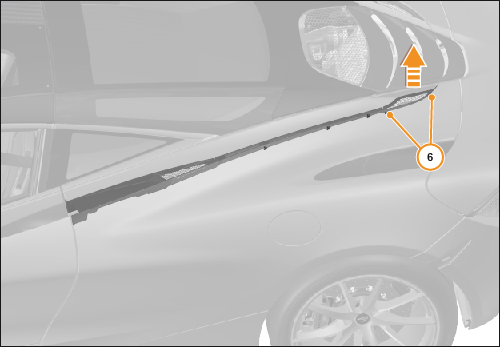

Detach clips (6) and remove rear aero bridge (arrow).

Install Aero bridge

Care Point:
Inspect and replace any damaged clips.

1.
Install components in reverse order.



   Note
