Body Panels and Closures / Panels / Bodyside Assembled / DA-RM-02A051-03-001 - Remove/Install bodyside - Upper - Left
Preparation work
1.
2.
3.
4.
5.
6.
7.
8.
9.
Care Point: Detach from fuel filler bowl only.
Remove bodyside - Upper

Care Point:
Risk of paint damage. Protect surrounding area.
Care Point:
Make sure vehicle is in sleep mode or the battery is disconnected.
Care Point:
Lift airbrake manually to allow clearance.
Care Point:
Shims may be fitted behind the bodyside - Upper.

1.
Remove bolts (1). (M6x16) 4.5 Nm

2.
Remove bolts (2). (M6x16) 4.5 Nm

3.
Remove bolts (3). (M6x16) 4.5 Nm

4.
Remove screw (4). (M4x6) 2 Nm

5.
Remove bolts (5).(M6x12) 5 Nm

6.
Remove screw (6).(M6x12) 4 Nm

7.

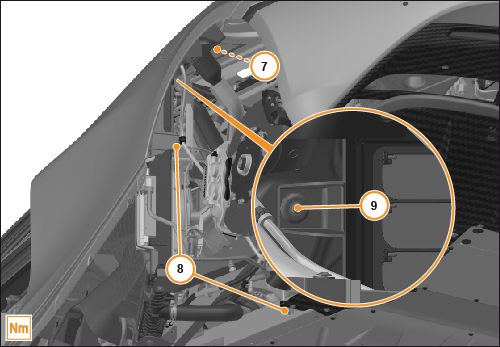

Disconnect fuel filler bowl electrical connector (7).

8.
Detach fuel filler bowl drain hose clips (8). (M6x16) 2.5 Nm

9.
Remove screw (9). (M6x16) 4.5 Nm


Care Point:
Bolt (9) furthest to front only has a washer.

10.
Remove bolt (9). (M6x16) 4.5 Nm

11.
Partially remove bodyside upper (10).


Care Point:
Detach hose from ISG cap.

12.
Disconnect external ISG hose (11).

13.
Remove bodyside upper (10) from vehicle.


Care Point:
If replacing bodyside upper.

14.
15.
Remove ISG cap. (M4x12) 3.5 Nm

Install bodyside - Upper

Care Point:
Make sure all shims are fitted in the correct position behind the bodyside - Upper
Care Point:
Complete a pull check to make sure ISG is correctly re-connected.

1.
Install component in reverse order.


Care Point:
The procedure below must be claimed separately if you make a warranty claim.

2.


   Note
