Remove Oil seal - Valve stem
| | | Care Point: | For the steps that follow, refer to the applicable procedures for the fastener locations and torque values.
|
| | | 1. | Remove the engine.
| | | | | Care Point: | Put the cylinder head on a cylinder head stand.
|
| | | 2. | Remove the cylinder head.
| | | 3. | | | | 4. | | | |
|
| | | Care Point: | Use a valve stem seal removal tool.
|

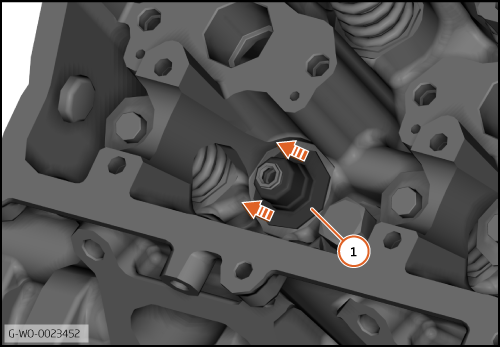

| | | 5. | Remove the valve stem seal (1) in the direction shown.
| | |
|
Install Oil seal - Valve stem
| | | Care Point: | Make sure that the bottom of the valve sem oil seal is fully against the cylinder head.
|
| | | 1. | Install the components in reverse order.
| | |
