Body Structures / Rear Structures / Rear Crash Structure / DA-RM-01A003-02-002 - Remove/Install bumper beam - Rear
Preparation work
1.
2.
3.
4.
Care Point: Remove both sides.
5.
Care Point: Remove both sides.
6.
7.
8.
Care Point: Remove both sides.
9.
Care Point: Remove both sides.
Remove bumper beam - Rear

Care Point:
Secure secondary air pumps once bolts (1) are removed. Do not allow to hang from air hoses.

1.

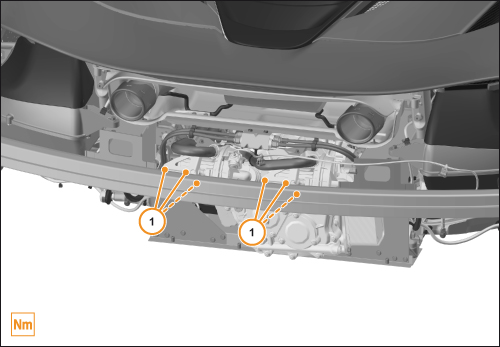

Remove bolts (1). (M6x14) 5 Nm

2.

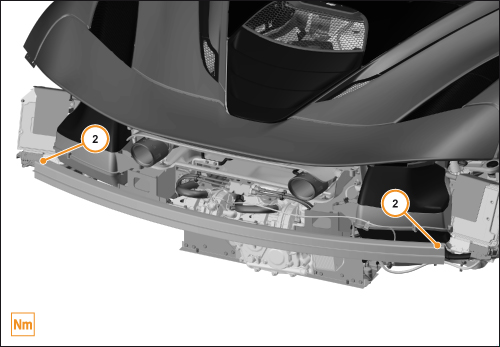

Remove bolts (2). (M6x16) 5 Nm

3.
Remove bolts (3). (M8x20) 8 Nm

4.
Remove bumper beam (4) from vehicle.

Install bumper beam - Rear
1.
Install components in reverse order.



   Note
