720S

1.	DA-RM-01A001-00-001 - Secure/Lift vehicle on platform
2.	DA-RM-03A071-07-002 - Remove/Install access hatch - Luggage bin
3.	Care Point: Depressurise suspension system before disconnecting battery. DA-RM-04B003-00-001 - Fill/Bleed fluid - Suspension system
4.	Care Point: Make sure EPB calipers are in service mode before disconnecting battery. DA-RM-07M003-00-001 - Disconnect/Connect Li-ion battery
5.	DA-RM-04L001-00-001 - Drain/Fill fluid - Coolant
6.	DA-RM-05G001-00-002 - Drain/fill fluid - Clutch oil
7.	Care Point: Only drain transmission oil if replacing gearbox. DA-RM-05G001-00-001 - Drain/fill fluid - Transmission oil
8.	Care Point: Remove both sides. DA-RM-04B005-01-001 - Remove/Install wheel - Rear
9.	DA-RM-03A076-02-001 - Remove/Install wheel arch liner - Rear
10.	DA-RM-03A075-04-001 - Remove/Install floor panel - Front
11.	DA-RM-01A004-02-001 - Remove/Install floor panel - Engine
12.	Care Point: Remove both sides. DA-RM-03A075-05-002 - Remove/Install floor panel - Rear extension
13.	DA-RM-03A075-05-001 - Remove/Install floor panel - Diffuser
14.	DA-RM-01A004-02-002 - Remove/Install floor panel - Transmission
15.	DA-RM-01A003-01-002 - Remove/Install crossbeam - Transmission floor
16.	DA-RM-02A051-08-002 - Remove/Install panel - Rear deck vent
17.	DA-RM-02A051-08-001 - Remove/Install panel - Service Cover
18.	DA-RM-02A051-08-003 - Remove/Install panel - Engine bay cover
19.	DA-RM-02A053-03-001 - Remove/Install panel - Airbrake
20.	Care Point: Remove both sides. DA-RM-02A051-03-004 - Remove/Install panel - Side duct finisher
21.	Care Point: Remove both sides. DA-RM-02A051-03-003 - Remove/Install panel - Dirty air duct
22.	Care Point: Remove both sides. DA-RM-02A051-03-002 - Remove/Install bodyside - Lower
23.	Care Point: Remove both sides. DA-RM-02A051-03-005 - Remove/Install panel - Aero bridge
24.	Care Point: Remove both sides. DA-RM-02A051-03-001 - Remove/Install bodyside - Upper - Left
25.	DA-RM-03A071-10-001 - Remove/Install bumper assembly - Rear
26.	DA-RM-05E001-02-002 - Remove/Install heatshield - Muffler - Upper
27.	DA-RM-05H001-02-001 - Remove/Install muffler
28.	DA-RM-05E001-02-003 - Remove/Install heatshield - Muffler - Lower
29.	DA-RM-05E001-02-004 - Remove/Install heatshield - Airguide
30.	DA-RM-02A051-08-004 - Remove/Install heatshield - Deck vent rear
31.	Care Point: Remove both sides. DA-RM-05H001-01-001 - Remove/Install catalytic converter and link pipe assembly - Left
32.	Care Point: Remove both sides. DA-RM-05F002-01-004 Remove/Install duct - airbox to clean air duct
33.	DA-RM-05F001-03-001 - Remove/Install pump - Secondary air
34.	DA-RM-01A003-02-002 - Remove/Install bumper beam - Rear
35.	Care Point: Remove both sides. DA-RM-04C002-03-001 - Remove/Install brake disc cooling duct - Rear
36.	Care Point: Remove both sides. Detach caliper from upright only, do not disconnect fluid hose. DA-RM-04C002-02-001 - Remove/Install brake caliper - Rear
37.	Care Point: Remove both sides. DA-RM-04C004-01-001 - Remove/Install brake caliper - Parking
38.	Care Point: Remove both sides. DA-RM-04C002-01-001 - Remove/Install brake disc - Rear
39.	DA-RM-05F005-01-001 - Remove/Install starter motor
40.	DA-RM-05G001-01-001 - Remove/Install Dual Clutch Transmission (DCT)

WARNING!
Possible fluid spills from vehicle systems during repairs or maintenance. Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours. Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.

Remove O-ring - Differential Cover

Care Point:

Use a suitable container to catch the excess fluid.

Care Point:

Leave two opposite bolts (1) in place and gently rock the cover to remove.

Care Point:

Make sure differential does not come out with the cover.

Remove bolts (1). (M10x30) 50 Nm

Remove differential cover.

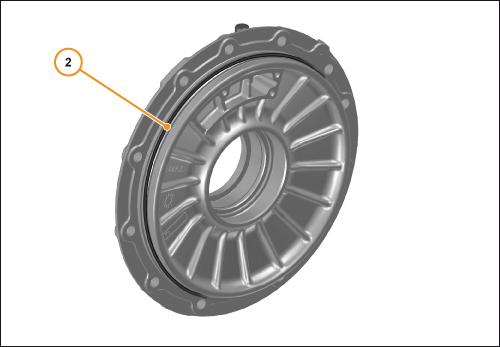

Remove and replace differential cover O-ring (2).

Remove O-ring - Differential cover lubrication channel

Care Point:

Proceed only if required.

Remove and replace O-ring (3).

Install O-ring/s - Differential cover

1.	Renew all O-ring.
2.	Make sure area is clean and free from dirt and debris to avoid contamination.
3.	Clean and apply Loctite 243 to bolts (1).
4.	Install components in reverse order.
5.	Check transmission for leaks.

V. 1.12
