Powertrain / Transmission Mounting / Transmission Mounting System / DA-RM-05G003-01-001 - Remove/Install mount - Transmission

Preparation work

1.	DA-RM-01A001-00-001 - Secure/Lift vehicle on platform
2.	DA-RM-03A071-07-002 - Remove/Install access hatch - Luggage bin
3.	Care Point: Depressurise suspension system before disconnecting battery. DA-RM-04B003-00-001 - Fill/Bleed fluid - Suspension system
4.	Care Point: Make sure EPB calipers are in service mode before disconnecting battery. DA-RM-07M003-00-001 - Disconnect/Connect Li-ion battery
5.	DA-RM-04L001-00-001 - Drain/Fill fluid - Coolant
6.	DA-RM-05G001-00-002 - Drain/fill fluid - Clutch oil
7.	Care Point: Only drain transmission oil if replacing gearbox. DA-RM-05G001-00-001 - Drain/fill fluid - Transmission oil
8.	Care Point: Remove both sides. DA-RM-04B005-01-001 - Remove/Install wheel - Rear
9.	Care Point: Remove both sides. DA-RM-03A076-02-001 - Remove/Install wheel arch liner - Rear
10.	DA-RM-03A075-04-001 - Remove/Install floor panel - Front
11.	DA-RM-01A004-02-001 - Remove/Install floor panel - Engine
12.	Care Point: Remove both sides. DA-RM-03A075-05-002 - Remove/Install floor panel - Rear extension
13.	DA-RM-03A075-05-001 - Remove/Install floor panel - Diffuser
14.	DA-RM-01A004-02-002 - Remove/Install floor panel - Transmission
15.	DA-RM-01A003-01-002 - Remove/Install crossbeam - Transmission floor
16.	DA-RM-02A051-08-002 - Remove/Install panel - Rear deck vent
17.	DA-RM-02A051-08-001 - Remove/Install panel - Service Cover
18.	DA-RM-02A051-08-003 - Remove/Install panel - Engine bay cover
19.	DA-RM-02A053-03-001 - Remove/Install panel - Airbrake
20.	Care Point: Remove both sides. DA-RM-02A051-03-004 - Remove/Install panel - Side duct finisher
21.	Care Point: Remove both sides. DA-RM-02A051-03-003 - Remove/Install panel - Dirty air duct
22.	Care Point: Remove both sides. DA-RM-02A051-03-002 - Remove/Install bodyside - Lower
23.	Care Point: Remove both sides. DA-RM-02A051-03-005 - Remove/Install panel - Aero bridge
24.	Care Point: Remove both sides. DA-RM-02A051-03-001 - Remove/Install bodyside - Upper - Left
25.	DA-RM-03A071-10-001 - Remove/Install bumper assembly - Rear
26.	DA-RM-05E001-02-002 - Remove/Install heatshield - Muffler - Upper
27.	DA-RM-05H001-02-001 - Remove/Install muffler
28.	DA-RM-05E001-02-003 - Remove/Install heatshield - Muffler - Lower
29.	DA-RM-05E001-02-004 - Remove/Install heatshield - Airguide
30.	DA-RM-02A051-08-004 - Remove/Install heatshield - Deck vent rear
31.	Care Point: Remove both sides. DA-RM-05H001-01-001 - Remove/Install catalytic converter and link pipe assembly - Left
32.	Care Point: Remove both sides. DA-RM-05F002-01-004 Remove/Install duct - airbox to clean air duct
33.	DA-RM-05F001-03-001 - Remove/Install pump - Secondary air
34.	DA-RM-01A003-02-002 - Remove/Install bumper beam - Rear
35.	Care Point: Remove both sides. DA-RM-04C002-03-001 - Remove/Install brake disc cooling duct - Rear
36.	Care Point: Remove both sides. Detach caliper from upright only, do not disconnect fluid hose. DA-RM-04C002-02-001 - Remove/Install brake caliper - Rear
37.	Care Point: Remove both sides. DA-RM-04C004-01-001 - Remove/Install brake caliper - Parking
38.	Care Point: Remove both sides. DA-RM-04C002-01-001 - Remove/Install brake disc - Rear
39.	DA-RM-05F005-01-001 - Remove/Install starter motor
40.	DA-RM-05G001-01-001 - Remove/Install Dual Clutch Transmission (DCT)

Remove transmission mount

Fit pressure pad (G1) on transmission mount (1) (arrow).

Fit pressure pad (G2) and bolt (G3) on transmission mount (2) (arrow).

Care Point:

Make sure that pressure pad (G1) is centred on transmission mount (1).

Press out transmission mount (1) (arrow). Transmission mount tool

Install transmission mount

Care Point:

Make sure markers on mount are positioned correctly.

Care Point:

Remove any displaced trim from the transmission mount to improve the visual appearance of the mount.

Fit pressure pad (G4) on transmission mount (2).

Fit pressure pad (G5), bolt (G3) and transmission mount (1) on transmission mount (2).

Care Point:

Transmission mount must be replaced with a new part.

Press in new transmission mount (1) (arrow).

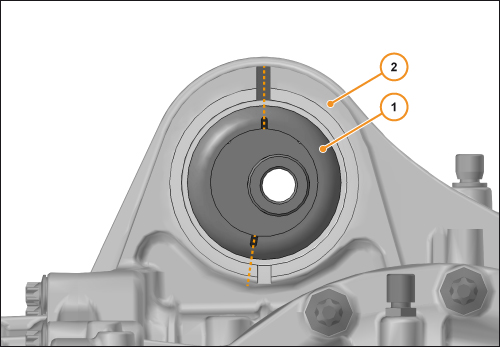

Make sure the top notch in the transmission mount (1) and the transmission casting (2) are aligned.

Make sure lower notch in the transmission mount is positioned clockwise to the transmission casting.

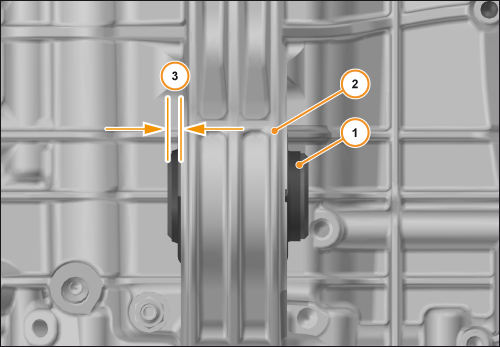

Measure the distance between the transmission mount face and the transmission casting (3). Make sure this measurement is 6mm. If not, adjust transmission mount.

Install components in reverse order.

Care Point:

The procedure below must be claimed separately if you make a warranty claim.

Bleed brake system. DA-RM-04C003-00-002 - Fill/bleed fluid - Brake system

Check for leaks.
