Powertrain / Transmission / Transmission / DA-RM-05G001-01-006 - Remove/Install sensor - Shaft speed
Preparation work
1.
2.
3.
4.
Care Point: Remove both sides.
5.
Care Point: Remove both sides.
6.
7.
Care Point: Remove both sides.
8.
Care Point: Remove both sides.
9.
Care Point: Remove both sides.
10.
Care Point: Remove both sides.
11.
12.
Care Point: Remove both sides.
13.
14.
Care Point: Remove both sides.
15.
16.
17.
18.
19.

WARNING!

Risk of burning and fire when handling hot or glowing objects!
Unprotected contact with hot or glowing objects can cause severe burns to the skin and eyes. If glowing objects come into contact with water, hot steam or hot splashing water this can result in severe skin and eye burns. Severe and possibly permanent injuries can result if hot or glowing objects come into contact with unprotected skin or eyes. Fire can result if glowing objects come into contact with flammable materials or substances.
Wear protective clothing, safety glasses and heat resistant gloves.
Avoid sparks and keep objects away from flammable materials and substances when handling glowing objects.


Remove sensor - Shaft speed

Care Point:
Allow vehicle to cool down sufficiently before carrying out any work.


1.
Disconnect the electrical connector/s (1) from the upper sensor/s.

2.
Remove bolts (2).(M4x14) 4 Nm

3.
Remove the upper sensor/s (3).



Care Point:
Proceed only if required.


4.
Disconnect the electrical connector (4).

5.
Remove bolt (5).(M4x14) 4 Nm

6.
Remove the lower sensor (6).



Install sensor - Shaft speed

Care Point:

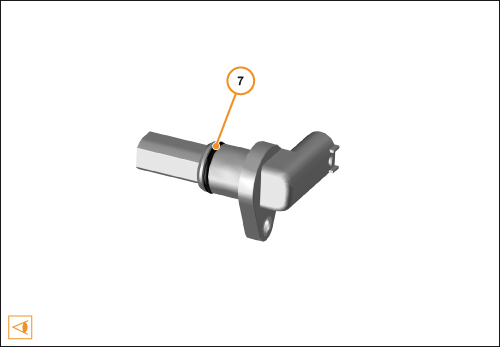

Check the condition of the O-ring (7). If the O-ring is damaged a new sensor is required.


1.
Lubricate O-rings.P80 THIX

2.
Install components in reverse order.

3.
Read out and clear error memory.





   Note
