Preparation work
| 1. | |
| 2. | |
| 3. | |
| 4. | |
| 5. | |
| 6. | |
| 7. | |
| 8. | Care Point: Do the two sides.
|
| 9. | Care Point: Do the two sides.
|
| 10. | |
| 11. | |
| 12. | |
| 13. | |
| 14. | |
| 15. | |
| 16. | |
| 17. | |
| 18. | Care Point: Disconnect from the oil tank only.
|
| 19. | |
| 20. | |
| 21. | |
| 22. | |
| 23. | |
| 24. | |
| 25. | |
| 26. | |
| 27. | |
| 28. | |
| 29. | |
 WARNING!
| |
Possible fluid spills from vehicle systems during repairs or maintenance.
Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours.
Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.
| |
Remove Hose - LTR to WCAC - Right

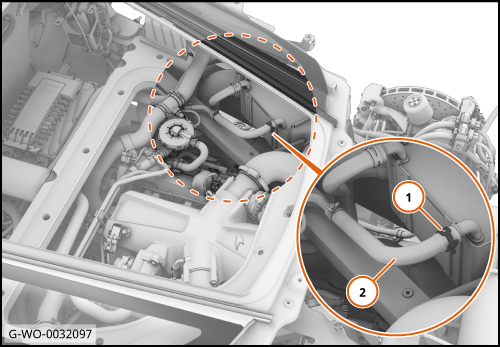

| 1. | Disengage the clip (1).
Disconnect the hose (2).
| | |
|

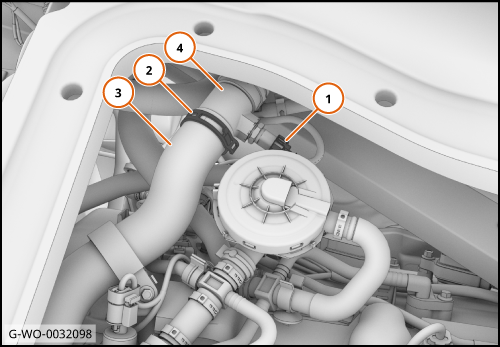

| 2. | Disconnect the electrical connector (1).
Disengage the clip (2).
Disconnect the hose (3).
Remove the outboard top hose assembly (4).
| | |
|

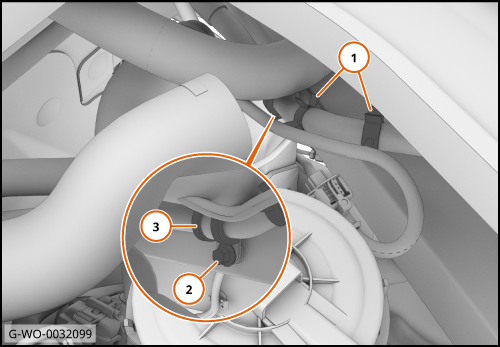

| | | | | 3. | Disengage the clips (1).
Remove the P-clip (3).
| | |
|
| | | Care Point: | To prevent damage to the HVAC system, immediately install protective covers on/in all openings.
|
| | | 4. | Disengage the clips (2).
Disconnect the electrical connector (3).
| | |
|

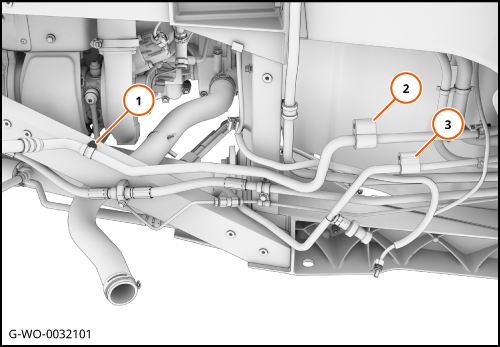

| 5. | Disconnect and remove the pipe (2).
Disconnect the pipe (3) and move aside.
| | |
|

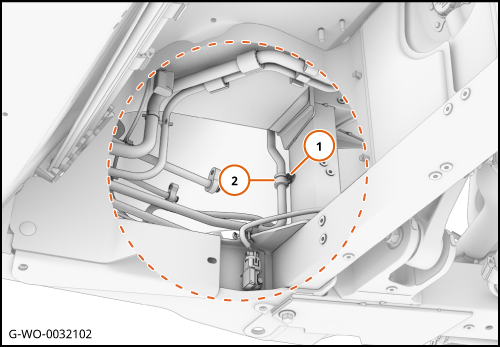

| 6. | Remove the P-clip (2).
| | |
|
| | | Care Point: | Use an applicable container to collect the fluid.
|

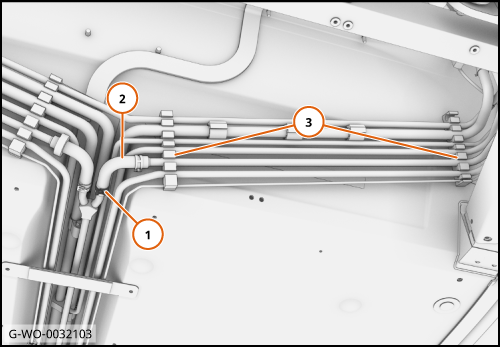

| | | 7. | Disengage the clip (1).
Disconnect the hose (2).
Disengage the pipe from the clamps (3).
| | |
|

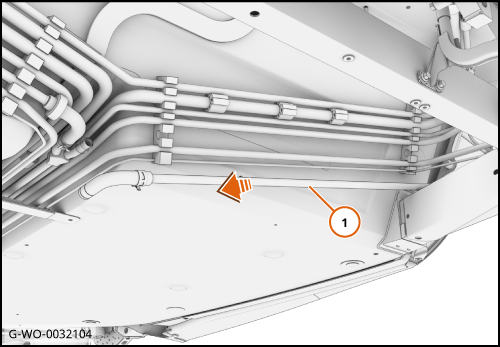

| 8. | Remove the hose assembly (1) in the direction shown.
| | |
|
Install Hose - LTR to WCAC - Right
| 1. | Install the components in reverse order.
| | |
