Electrical / Electrical Systems / Door Control System / DA-RM-07M002-02-002 - Remove/Install switch - Door lock - External
Preparation work
1.
2.
3.
4.
5.
6.
7.
8.
9.
Care Point: If removing left hand side, carry out the following pre-works and detach from fuel filler bowl only.
10.
Remove switch - Door lock - External
1.

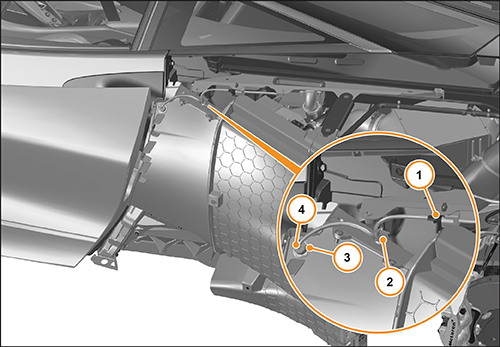

Disconnect the electrical connector (1).

2.
Release clip (2).

3.
Remove nut (3). (M19) 1.5 Nm

4.
Remove the switch - Door lock - External (4).

Install switch - Door lock - External
1.
Install components in reverse order.



   Note
