Powertrain / Engine Air Systems / Charge Air Cooling System / DA-RM-05F002-03-001 - Remove/Install water charge air cooler (WCAC)
Preparation work
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
WARNING!

Possible fluid spills from vehicle systems during repairs or maintenance.
Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours.
Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.

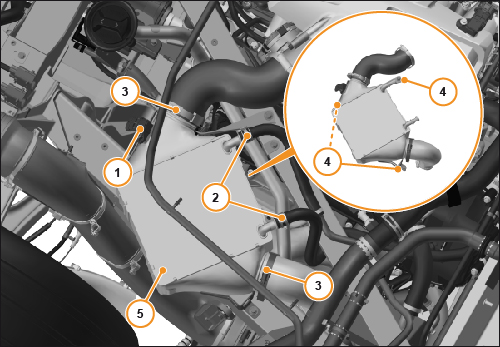

Remove water charge air cooler
1.
Disconnect electrical connector (1).

2.
Remove hoses (2).

3.
Remove hoses (3).

4.
Remove bolts (4).

5.
Remove part (5).

Install water charge air cooler
1.
Install components in reverse order.



   Note
