Preparation work
 WARNING!
| |
Possible fluid spills from vehicle systems during repairs or maintenance.
Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours.
Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.
| |
Remove seal - Output shaft
| | | Care Point: | Procedure is identical for both sides.
|
| Care Point: | Use a suitable container to catch the excess fluid.
|
| | | 1. | Remove output shaft seal (1) with a puller.
| | |
|
Install seal - Output shaft
| | | Care Point: | Make sure correct tool is used for correct side of vehicle.
|

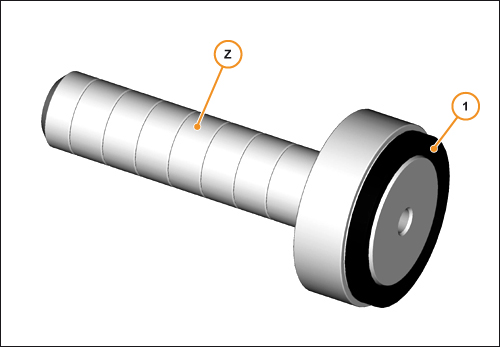

| | | 1. | Fit seal (1) on special tool (z) in correct direction.
| | | 2. | Make sure area is clean and free from dirt and debris to avoid contamination.
| | | 3. | Line up seal to transmission.
| | |
|

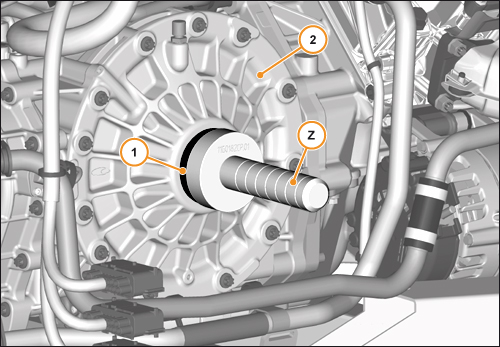

| 4. | Insert the new seal (1) into the transmission bore (2) with special tool (z).
| | | 5. | Install components in reverse order.
| | | 6. | Check transmission for leaks.
| | |
|
