Install - Heat shield - Duct - Clean air
| | | Care Point: | The procedure is the same for left and right air duct.
|
| Care Point: | When you apply cleaner and promoter, obey the manufacturer's flash times.
|

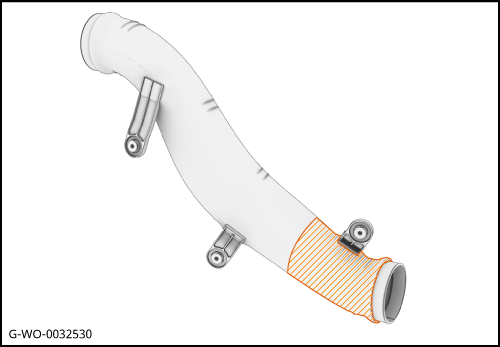

| | | 1. | | | |
|
| | | Care Point: | Make sure the temperature of the components is not less than 15°C before assembly.
|
| Care Point: | Maximum bond strength may not be achieved for 24 hours.
|
| | | 2. | Remove the self adhesive backing from the heat shield.

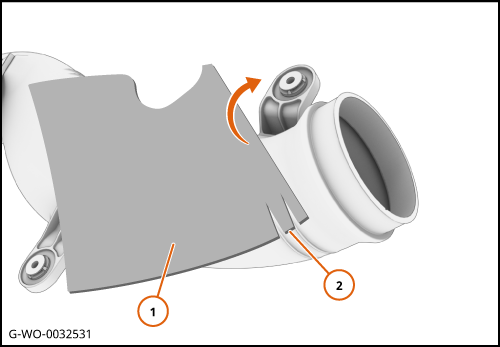

Apply the heatshield (1) to the duct. To start, make sure the heat shield engages to the moulding (2) as shown.
Continue to apply the heat shield to the duct in the direction shown.
Apply pressure to the heat shield to make sure that the bond is satisfactory.
| | |
|
