Powertrain / Engine Air Systems / Air Intake Low Pressure System / DA-RM-05F002-01-001 - Remove/Install air filter
Preparation work
1.
2.
3.
4.
Remove air filter
1.

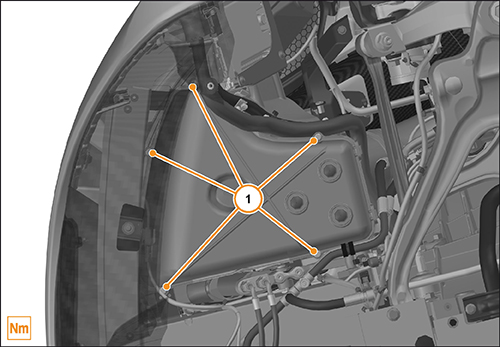

Remove bolts (1). (M5x16) 3 Nm

2.

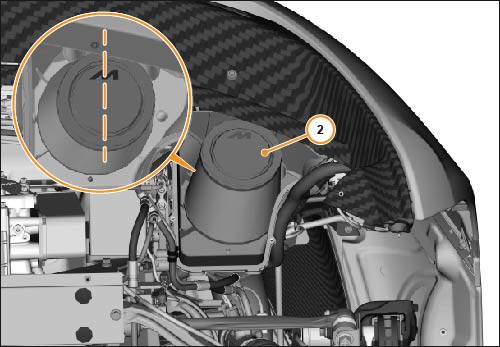

Pull and remove (2).

Install air filter

Care Point:
Make sure filter is aligned correctly (as shown in graphic) during installation.

1.
Install components in reverse order.



   Note
