Remove valve - Secondary air system

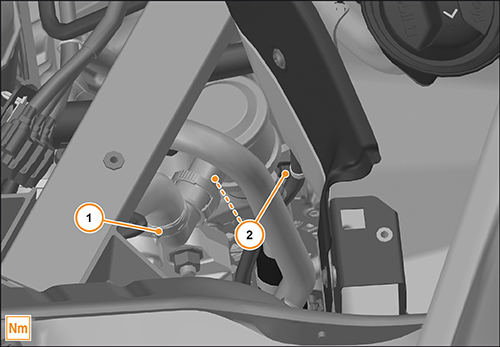

| 1. | Disconnect secondary air hose (1).
| | | 2. | | | | 3. | Remove valve from vehicle.
| | |
|
Install valve - Secondary air system
| | | Care Point: | Elbow brackets are handed. Make sure these are fitted correctly.
|
| Care Point: | Renew Oetiker clips.
|
| | | 1. | Replace the gasket.
| | | | | Care Point: | Make sure electrical connector is located correctly.
|
| | | 2. | Install components in reverse order.
| | | 3. | Read out and clear error memory.
| | |
