Chassis / Heating Ventilation & Air Conditioning (HVAC) / HVAC Fluids Circuit / DA-RM-04L003-01-006 - Remove/Install Hose - Compressor - Condensor
Preparation work
1.
2.
3.
Care Point: Remove left side.
4.
WARNING!

Possible fluid spills from vehicle systems during repairs or maintenance.
Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours.
Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.

Remove Hose - Compressor - Condensor

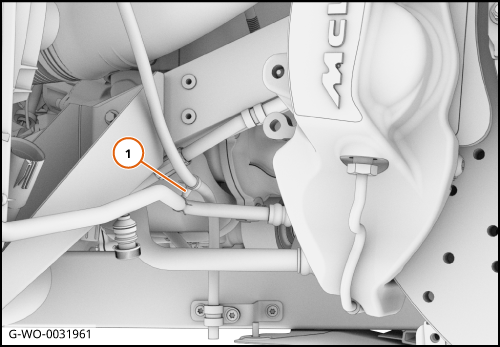

1.
Remove the nut (1) (M6) 10 Nm.
Disengage the hose (2).

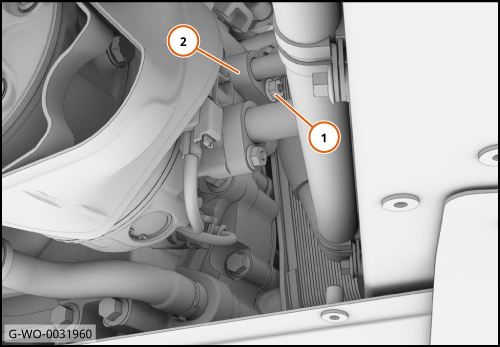

2.
Disengage the clip (1).

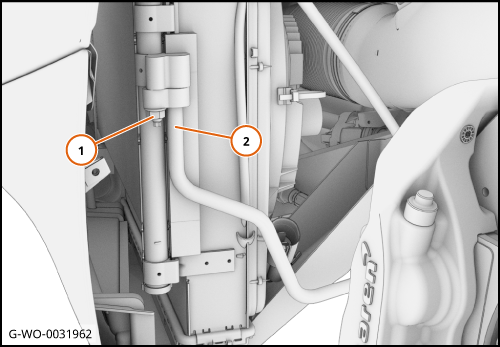

3.
Remove the nut (1) 8 Nm.
Disengage the hose (2).
Remove the hose.

Install Hose - Compressor - Condensor
1.
Install the components in reverse order.



   Note
