       Special advice          Tools/Equipment           Fluids, lubricants, adhesive
Instructions
Chassis / Heating Ventilation & Air Conditioning (HVAC) / HVAC Fluids Circuit / DA-RM-04L003-01-005 - Remove/Install Hose - Condenser - Receiver drier
Preparation work
1.
2.
3.
4.
5.
6.
Remove Hose - Condenser - Receiver drier
1.

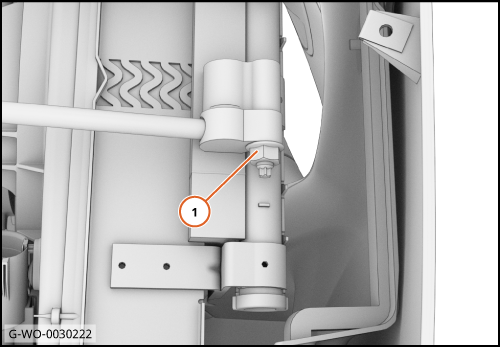

Remove nut (1) 8 Nm.

2.
Remove the hose.

Install Hose - Condenser - Receiver drier

Care Point:
Replace O-rings. Refer to the Spare Parts Catalogue (SPC) for part numbers.

1.
Install the components in reverse order.



   Note
