Preparation work
| 1. | Care Point: Remove both sides.
|
| 2. | |
| 3. | |
Remove Sensor - Vacuum - Brake booster

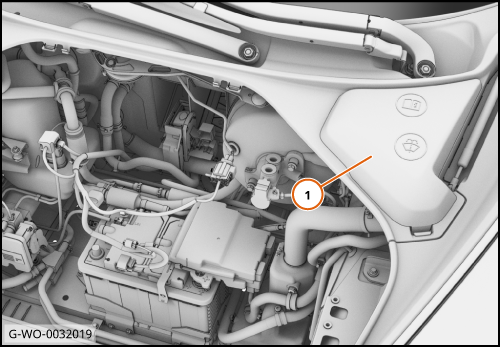

| 1. | Remove the service cover (1).
| | |
|
| | | Care Point: | Use an applicable container to collect the fluid.
|

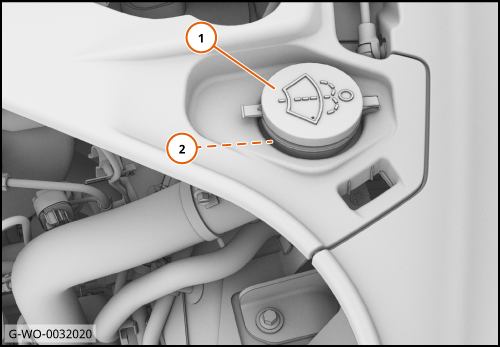

| | | 2. | Remove the filler cap (1).
Disengage the filler neck clips (2).
Move the filler neck to one side.
| | |
|

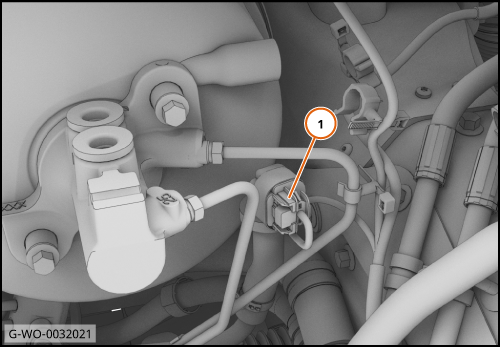

| 3. | Disconnect the electrical connector (1).
| | |
|

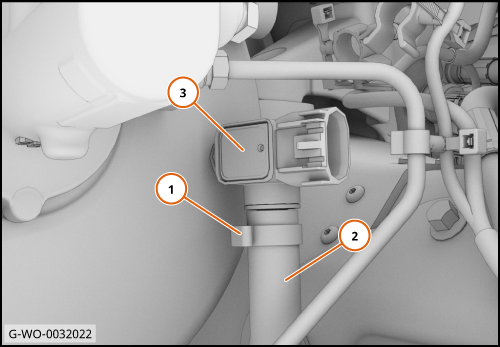

| 4. | Disengage the clip (1).
Disconnect the hose (2).
Disengage the sensor (3) from the brake booster.
| | |
|
Install Sensor - Vacuum - Brake booster
| 1. | Install the components in reverse order.
| | |
