Preparation work
| 1. | |
| 2. | |
| 3. | |
| 4. | Care Point: Remove both sides.
|
| 5. | |
| 6. | |
| 7. | |
| 8. | Care Point: Left hand drive vehicles only.
|
| 9. | Care Point: Remove both sides.
|
| 10. | Care Point: Remove both sides.
|
 WARNING!
| |
Risk of poisoning and injury when handling brake fluid!
Swallowing brake fluid can cause symptoms of poisoning such as headaches, dizziness, stomach pains, vomiting, diarrhoea, cramps and unconsciousness.
A dose of more than 100 cm3 can have fatal consequences.
Contact with brake fluid can cause serious skin damage to unprotected skin.
Wear safety glasses and protective clothing such as rubber gloves.
| • | Ensure that brake fluid is only accessible to authorized personnel.
| | • | Store brake fluid in original containers only.
| | • | Only store brake fluid in suitable, appropriately marked containers.
| | • | Never put brake fluid in beverage containers.
|
| |
WARNING!
| |
Possible fluid spills from vehicle systems during repairs or maintenance.
Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours.
Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.
| |
Remove reservoir - Brake fluid
| 1. | Evacuate brake fluid from the reservoir.
| | |
|

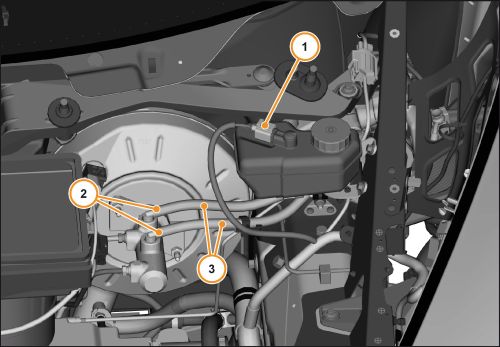

| 2. | Disconnect electrical connector (1).
| | | 3. | Detach clips (2).
| | | | | Care Point: | Catch escaping fluid in a suitable container. Do not re-use this fluid.
|
| | | 4. | Detach brake hose (3) from brake master cylinder.
| | |
|
| 5. | | | | | | Care Point: | Take care when handling the brake fluid reservoir.
|

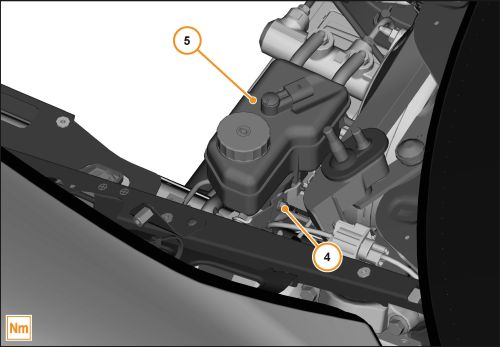

| | | 6. | Remove brake fluid reservoir (5).
| | |
|
Install reservoir - Brake fluid
| 1. | Install components in reverse order.
| | | | | Care Point: | The procedure below must be claimed separately if you make a warranty claim.
|
| | | 2. | | | |
