If not replacing windscreen, apply tape to aid in re-alignment of wiper arms and to protect windscreen from damage.

Arms can be removed by flexing the spring joint and gently rocking the arms on the spindle.

Wiper arms can only be refitted to a vehicle 5 times.

When re-fitting, place a dot using a paint pen on the inside of the arm, positioned as close to the wiper spindle as possible so as not to be visible when wipers are in operation.

If the wiper arm/s have 4 paint pen dots, the arm/s must be replaced.

Make sure wiper motor is in park position before installing.

Make sure vehicle is in sleep mode before installing.

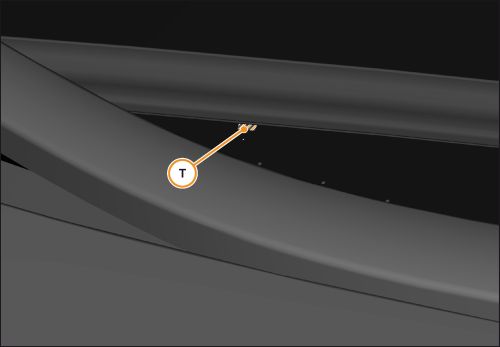

Make sure wiper blade aligns with park position timing marks (T) in windscreen.

If wiper arms move whilst applying torque, remove nut and restart installation.

Clean and apply Loctite 243 to all fixings.

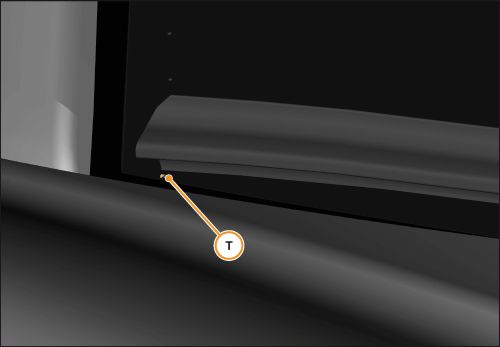

Make sure wiper blade aligns with park position timing marks (T) in windscreen.

If wiper arms move whilst applying torque, remove nut and restart installation.

Compress driver arm spring joint whilst aligning and installing upper driver arm.

Pressure must be held until the fixing nut is installed and torque is applied..

Make sure upper driver arm is as close to parallel to the wiper blade as possible.

Make sure there is a suitable gap between driver and passenger wiper arms.

Make sure wiper blade aligns with park position timing marks (T) in windscreen.

If wiper arms move whilst applying torque, remove nut and restart installation.

Make sure no clashes with bodywork or between the arms occurs.
