Electrical / Electrical Systems / Interior Switches / DA-WD-M00201-04 - Switch Illumination

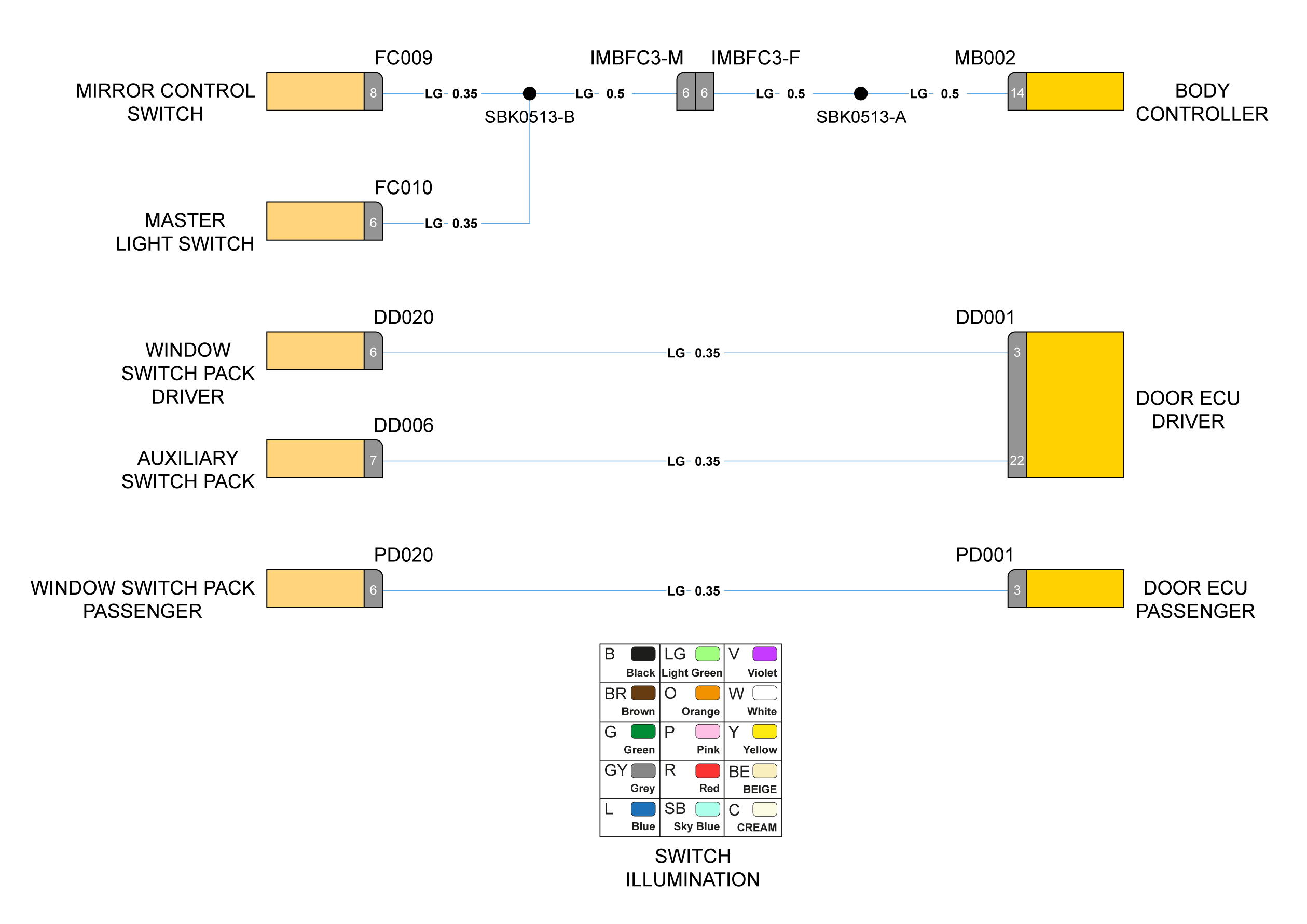

DA-WD-M00201-04 - Switch Illumination
-
+


   Note
