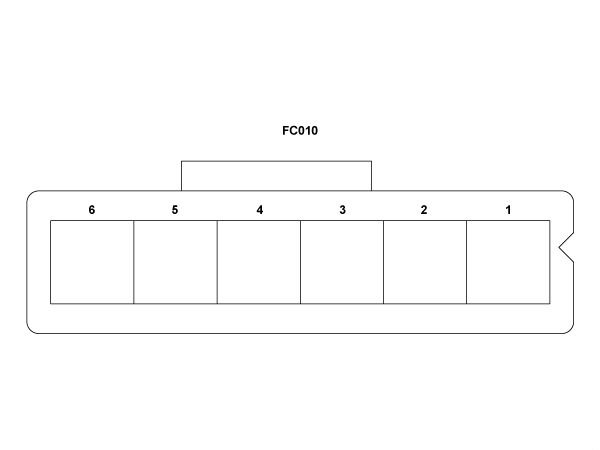

Pin
Electrical / Electrical Systems / Interior Switches / DA-WD-M00201-04 - Switch Illumination

Pos No
Name
1
Power
2
Fog status LED
3
Resistor ladder 1
4
Ground
5
Resistor ladder 2
6
Lighting (KL58)


   Note
