          DA-WD-N00105-01 - Electrochromatic Rear View Mirror and Rain Light Sensor
        Seat Assembly
  Customer Service
Pin

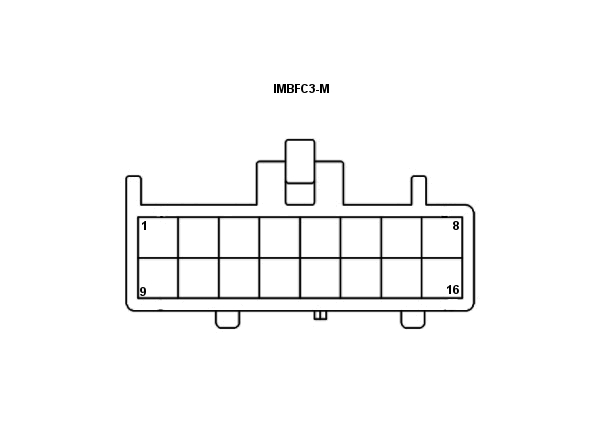

Interior / Interior Systems / Driver Mirror / DA-WD-N00105-01 - Electrochromatic Rear View Mirror and Rain Light Sensor

Pos No
Name
1
Ground
2
Paddle switch up
3
Park Distance Control (PDC) signal
4
Stalk power
5
Resistor ladder 1
6
Lighting (KL58)
7
Park distance control (PDC) LED
8
Resistor ladder 1
9
-
10
Ground
11
Powertrain CAN +
12
Powertrain CAN -
13
Resistor ladder 2
14
Pin14
15
Speaker Centre High Line - Negative
16
Speaker Centre High Line - Positive
