Chassis / Suspension Rear / Road Springs Rear / DA-RM-04B002-04-001 - Remove/Install Z-bar - Rear
Preparation work
1.
2.
Care Point: Remove both sides.
3.
Care Point: Remove both sides.
4.
5.
Remove Z-bar - Rear
1.

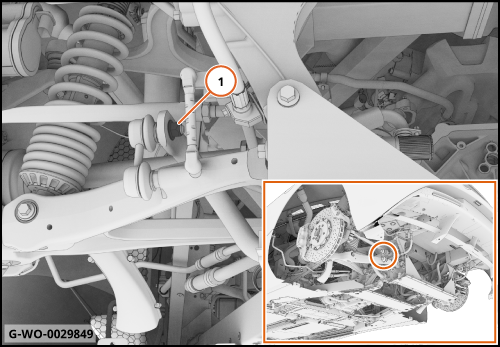

Remove nuts (1) on both sides of the Z-bar.60 Nm


Care Point:
Observe the position of shims.

2.

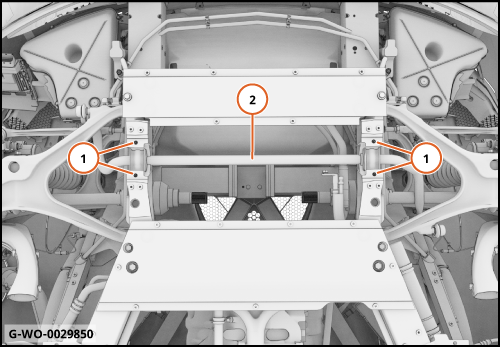

Remove bolts (1).(M8x20) 20 Nm

3.
Remove Z-bar (2).

Install Z-bar - Rear
1.
Install components in reverse order.



   Note
