720S

1.	DA-RM-01A001-00-001 - Secure/Lift vehicle on platform
2.	DA-RM-04B005-01-001 - Remove/Install wheel - Rear
3.	DA-RM-04C004-01-001 - Remove/Install brake caliper - Parking
4.	DA-RM-04C002-02-001 - Remove/Install brake caliper - Rear
5.	DA-RM-04C002-03-001 - Remove/Install brake disc cooling duct - Rear
6.	Care Point: Disconnect only. DA-RM-04B002-02-003 - Remove/Install sensor - Wheel speed - Rear
7.	DA-RM-04C002-01-001 - Remove/Install brake disc - Rear
8.	DA-RM-04B002-02-001 - Remove/Install upright - Rear

CAUTION!

Risk of injury when unscrewing micro-encapsulated bolts!

There is an increased risk of injury when unscrewing micro-encapsulated bolts due to the sudden breakaway torque.

Always replace bolts with locking splines, microencapsulated bolts and self-locking nuts after they have been used once.

•	Re-cut the mating thread before new micro-encapsulated bolts are screwed in, in order to remove all residue of the old bolt locking compound.

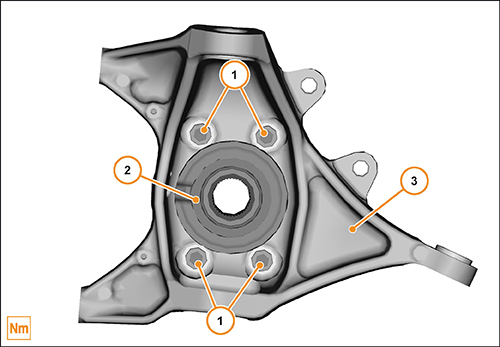

Remove wheel hub assembly - Rear

1.	Remove bolts (1).(M12x30) 60 Nm
2.	Remove hub (2) from upright (3).

Install wheel hub assembly - Rear

Care Point:

Make sure bolts are cleaned and Loctite 2701 is applied.

Install components in reverse order.

V. 1.8
