       Special advice          Tools/Equipment           Fluids, lubricants, adhesive
Instructions
Body Exterior / Ducts, Vents and Floors / Rear Non-structural Floors / DB-RM-03A075-05-001 - 765 LT Remove/Install Floor panel - Diffuser
Preparation work
1.
2.
Care Point: Remove both sides.
Care Point:
The procedure is the same for both standard and accessory components.
Remove Floor panel - Diffuser
1.

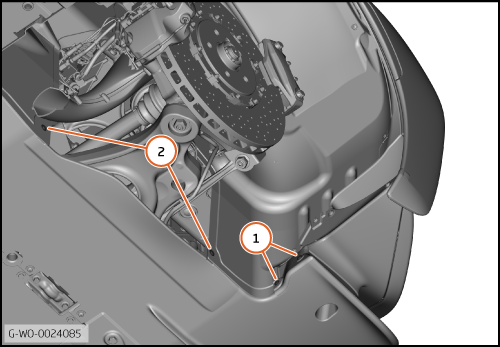

Remove the bolts (1) (M5x12) 1.5 Nm.


2.
Remove the bolts (2) (M6x16) 4 Nm.

3.
Do steps 1 and 2 for the right side.

4.

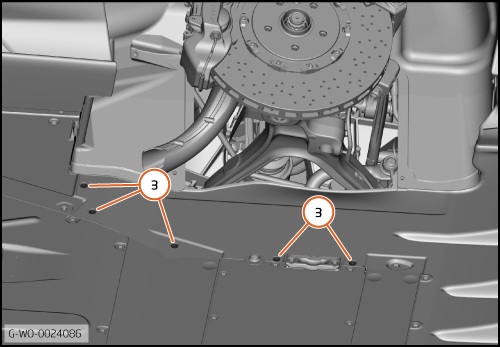

Remove the bolts (3) (M6x16) 6 Nm.

5.
Do step 4 for the right side.

6.

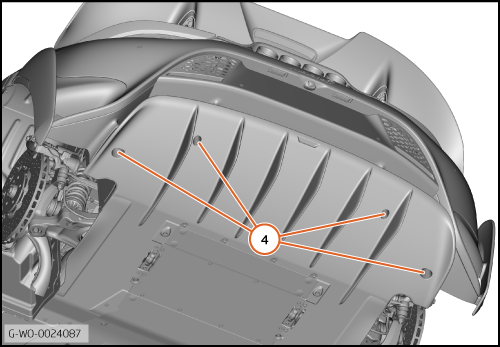

Remove the bolts (4) (M6x16) 6 Nm .

7.

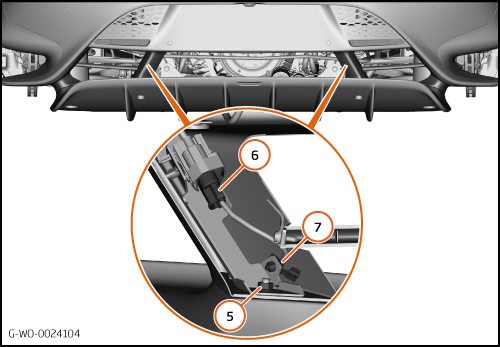

Remove the nut (5) (M6) 6 Nm.

8.
Do step 7 for the right side.


9.
Disconnect the electrical connector (6) and disengage the clip (7). .


Care Point:
You must have the aid of one more person for the step that follows.

10.

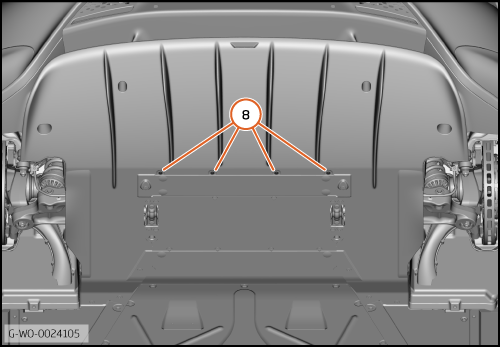

Remove the bolts (8) (M6x16) 6 Nm and lower the diffuser a small distance.

11.

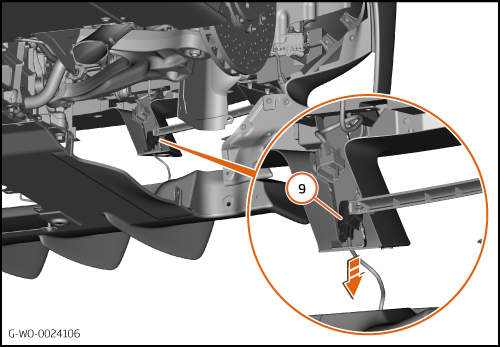

Push the harness (9) through the hole.

12.
Remove the diffuser.

Remove Floor panel - Diffuser

Care Point:
Make sure that the harness grommet is installed correctly.

1.
Install the components in reverse order.



   Note
