Check and adjust - Panels
| |

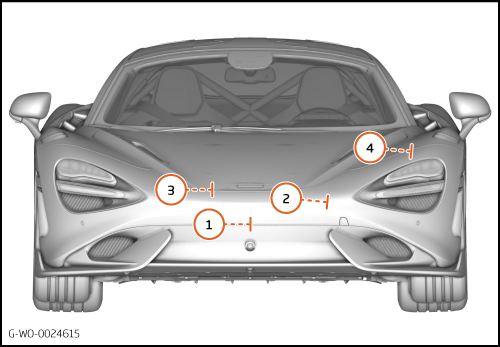

| | | 1. | Front
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
1
| Bumper upper (A) to splitter centre (B)
| 1.0 ± 0.5
| -2.5 ±1.25
|
| 2
| Parking sensor (A) to bumper (B)
| N/A
| 0.5 ± 0.5
|
| 3
| Bonnet (A) to bumper upper (B)
| 3.0 ± 0.5
| 1.5 ± 1.0
|
| 4
| Bumper upper (A) to fender (B)
| 0.5 ± 0.5
| -0.5 ± 0.5
|
|
| | |
|

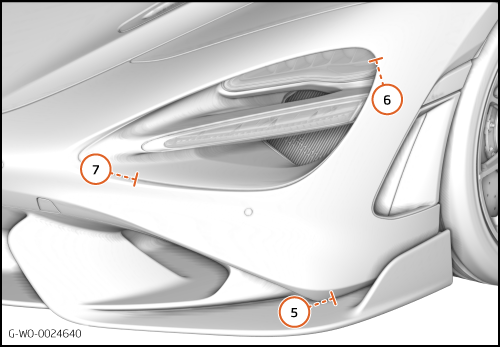

| 2. | Front (continued)
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
5
| Bumper (A) to splitter (B)
| 1.0 ± 0.5
| N/A
| N/A
| 6
| Headlight bezel (A) to headlight (B)
| Parts must not touch
| N/A
| N/A
| 7
| Bumper (A) to headlight bezel (B)
| 0.0 ± 0.5
| -1.0 ± 0.5
|
|
| | |
|

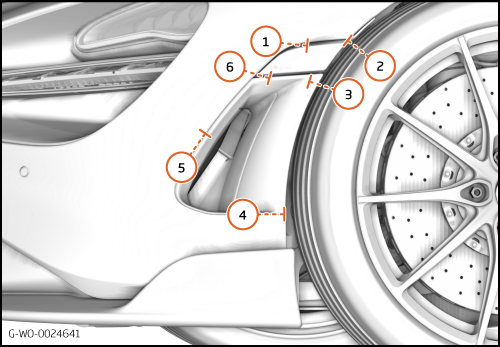

| 3. | Low Temperature Radiator (LTR) exit duct
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
1
| Bumper (A) to side marker (B)
| 1.0 ± 0.5
| -0.5 ± 0.5
|
| 2
| Bumper (A) to side marker line out (B)
| N/A
| -2.0 ± 1.0
|
| 3
| LTR exit duct (A) to side marker
| N/A
| -2.0 ± 1.0
|
| 4
| Bumper (A) to splitter blade line out (B)
| N/A
| 0.0 ± 1.5
|
| 5
| Bumper to LTR exit duct
| 0.0 + 1.0/ -0.0
| N/A
| N/A
| 6
| Side marker to LTR exit duct
| 1.0 ± 0.5
| N/A
| N/A
|
| | |
|

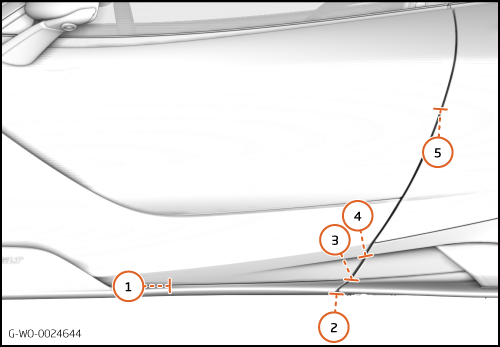

| 4. | Side
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
1
| Door blade to door skirt
| 1.0 ± 1.0
| N/A
| N/A
| 2
| Door skirt line out (A) to body skirt (B)
| N/A
| -0.5 ± 0.5
|
| 3
| Door skirt (A) to body skirt (B)
| 4.0 ± 1.0
| -1.0 ± 1.0
|
| 4
| Door blade (A) to fender lower (B)
| 4.0 ± 1.0
| 0.0 ± 1.0
|
| 5
| Door applique (A) to fender upper (B)
| 4.0 ± 0.5
| -0.5 ± 0.5
|
|
| | |
|

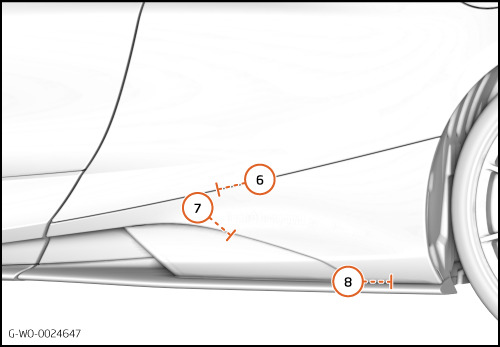

| 5. | Fender lower
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
6
| Fender upper (A) to fender lower (B)
| 0.5 ± 0.5
| -0.75 ± 0.75
|
| 7
| Fender skirt to fender lower
| 1.0 ± 1.0
| N/A
| N/A
| 8
| Fender lower to fender skirt
| 1.0 ± 1.0
| N/A
| N/A
|
| | |
|

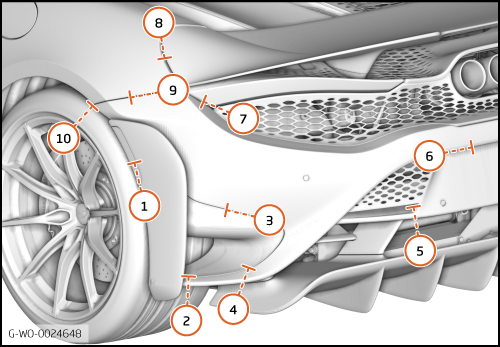

| 6. | Rear
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
1
| Bumper blade (A) to side marker (B)
| 1.0 ± 0.5
| -0.5 ± 0.5
|
| 2
| Bumper blade (A) to bumper outer (B)
| 1.0 + 0.0, - 0.5
| 0.0 ± 1.0
|
| 3
| Bumper (A) to bumper outer (B)
| 1.0 ± 0.5
| -1.0 ± 0.75
|
| 4
| Bumper (A) to bumper outer (B)
| 1.0 ± 0.5
| -1.0 ± 0.75
|
| 5
| Reflector to bumper lower
| 1.0 ± 0.5
| N/A
| N/A
| 6
| Bumper skin to bumper lower
| 1.0 ± 0.5
| N/A
| N/A
| 7
| Rear bumper to rear lamp
| 3.0 ± 1.5
| N/A
| N/A
| 8
| Fender upper (A) to airbrake (B)
| 4.0 ± 1.0
| -2.0 ± 1.0
|
| 9
| Fender upper (A) to bumper skin (B)
| 0.5 ± 0.5
| 1.0 ± 0.5
|
| 10
| Fender upper (A) to bumper skin line out (B)
| N/A
| 0.0 ± 0.5
|
|
| | |
|

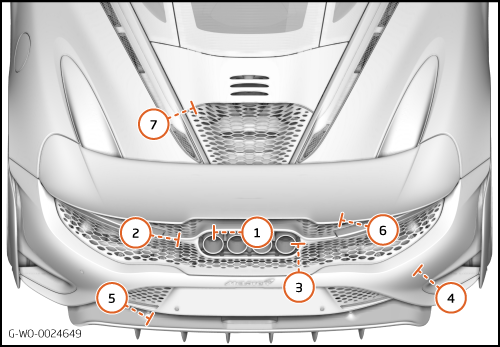

| 7. | Rear (continued)
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
1
| Exhaust finisher to airbrake heatshield
| 15.0 ± 1.0
| N/A
| N/A
| 2
| Underwing mesh (A) to rear grille (B)
| 3.0 ± 1.0
| -1.0 ± 1.0
|
| 3
| Exhaust finisher to airbrake heatshield
| 15.0 ± 1.0
| N/A
| N/A
| 4
| Bumper (A) to parking sensor (B)
| N/A
| -0.5 ± 0.5
|
| 5
| Bumper to diffuser inboard
| 1.0 ± 0.5
| N/A
| N/A
| 6
| Airbrake (A) to airbrake pylon (B)
| N/A
| -2.0 ± 1.0
|
| 7
| Service cover (A) to deck vent mesh (B)
| 3.0 ± 1.5
| -2.0 ± 1.0
|
|
| | |
|

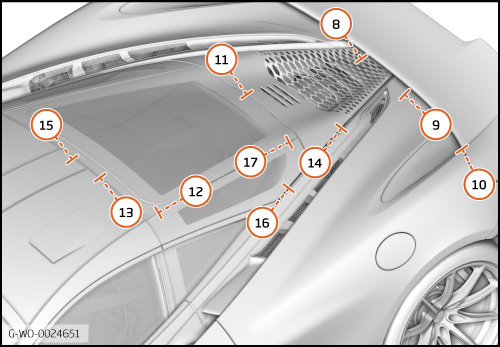

| 8. | Rear (continued)
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
8
| Deck vent mesh to underwing mesh
| 2.0 ± 1.0
| N/A
| N/A
| 9
| Fender upper (A) to underwing mesh (B)
| 2.0 ± 1.0
| -1.0 ± 1.0
|
| 10
| Fender upper (A) to airbrake line out (B)
| N/A
| 0.0 ± 1.5
|
| 11
| Tailgate (A) to service cover (B)
| 3.0 ± 1.5
| -1.5 ± 1.0
|
| 12
| Tailgate (A) to c pillar glass (B)
| 3.0 ± 1.0
| -4.0 ± 1.0
|
| 13
| Door upper (A) to tailgate (B)
| 5.0 ± 1.5
| -1.0 ± 0.5
|
| 14
| Fender upper to service cover
| 3.0 ± 1.25
| N/A
| N/A
| 15
| Roof (A) to tailgate (B)
| 4.0 ± 1.0
| -3.0 ± 1.25
|
| 16
| C pillar glass to fender upper
| 3.0 ± 1.25
| N/A
| N/A
| 17
| Tailgate (A) to c pillar glass (B)
| 3.0 ± 1.00
| -0.5 ± 0.5
|
|
| | |
|

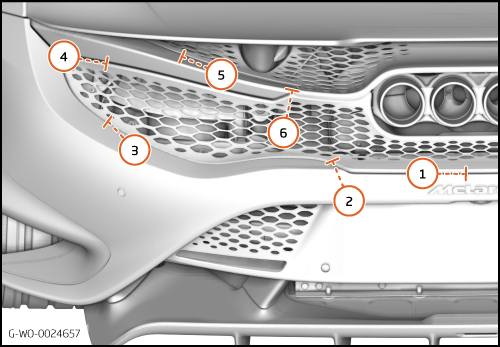

| 9. | Rear (continued)
Section number
| Description
| Gap (mm)
| Flush (mm)
| Flush
|
1
| Bumper (A) to rear grille (B)
| 1.0 ± 0.5
| -1.0 ± 0.75
|
| 2
| Bumper (A) to rear grille (B)
| 1.5 ± 1.0
| -1.0 ± 1.0
|
| 3
| Bumper (A) to rear grille (B)
| 1.0 +1.0/-0.0
| -2.0 ± 1.0
|
| 4
| Rear lamp (A) to rear grille (B)
| 2.0 ± 1.0
| -2.0 ± 1.0
|
| 5
| Underwing mesh to rear lamp
| 2.0 ± 1.0
| N/A
| N/A
| 6
| Underwing mesh (A) to rear lamp (B)
| 2.0 ± 1.0
| 0.0 ± 1.0
|
|
| | |
|
