Body Structures / Upper Structures / Rear Upper Structure / DB-RM-01A005-02-001 - 765 LT Remove/Install Service hatch - Bulkhead
Preparation work
1.
2.
Remove Service hatch - Bulkhead
1.

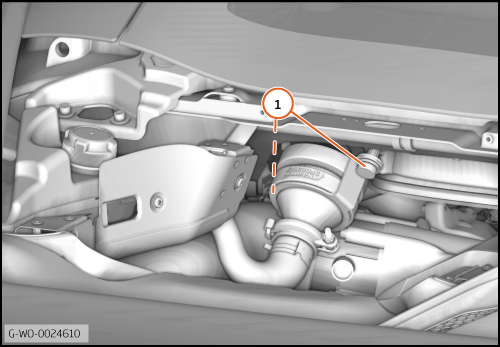

Disengage the fasteners (1) from the studs.

2.

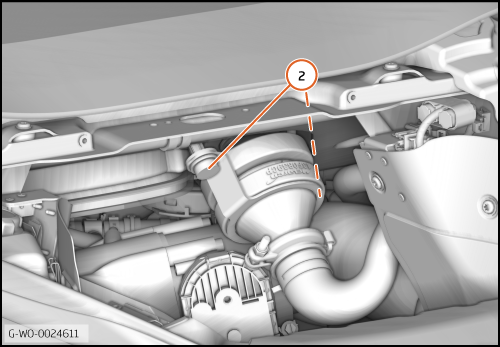

Disengage the fasteners (2) from the studs.


Care Point:
Risk of damage. Be careful with easily damaged parts and trim.

3.

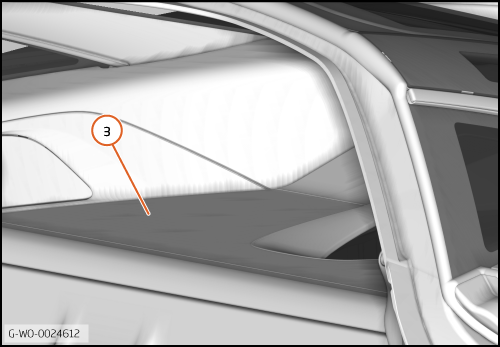

Remove the luggage floor (3).

4.

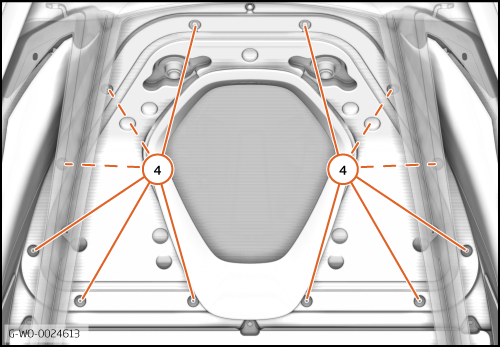

Remove the bolts (4) (M5x12) 4 Nm.

5.
Remove the service hatch.

Install Service hatch - Bulkhead
1.
Apply Loctite 8009 to the bolt threads.

2.
Install the components in reverse order.



   Note
