Preparation work
| 1. | |
| 2. | |
| 3. | |
| 4. | Care Point: Do not remove actuator from vehicle. Leave installed into wishbone.
|
 WARNING!
| |
Risk of injury and poisoning working with hydraulic fluid!
Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. When disengaging hydraulic lines without depressurising the system, dangerous skin or eye injuries can occur due to the very high pressures (in excess of 200 bar). If hydraulic fluid, particularly central hydraulic fluid (especially harmful), comes into contact with unprotected skin, this can cause damage to the skin.
If hydraulic fluid is swallowed, this can lead to poisoning symptoms such as headache, dizziness, nausea, vomiting, diarrhoea, cramps and unconsciousness.
Wear protective gloves, protective clothing and eye protection.
| • | Depressurise and drain the system if necessary when commencing work on hydraulic systems.
| | • | Never put hydraulic fluid into beverage containers.
| | • | Ensure sufficient ventilation, especially in the case of central hydraulic fluid.
| | • | Ensure that only authorised persons have access to hydraulic fluid.
| | • | Immediately seal disconnected leads and hoses and the connections to the assembly with blind plugs.
|
| |
WARNING!
| |
Risk of injury and poisoning working with hydraulic fluid!
Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. When disengaging hydraulic lines without depressurising the system, dangerous skin or eye injuries can occur due to the very high pressures (in excess of 200 bar). If hydraulic fluid, particularly central hydraulic fluid (especially harmful), comes into contact with unprotected skin, this can cause damage to the skin.
If hydraulic fluid is swallowed, this can lead to poisoning symptoms such as headache, dizziness, nausea, vomiting, diarrhoea, cramps and unconsciousness.
Wear protective gloves, protective clothing and eye protection.
| • | Depressurise and drain the system if necessary when commencing work on hydraulic systems.
| | • | Never put hydraulic fluid into beverage containers.
| | • | Ensure sufficient ventilation, especially in the case of central hydraulic fluid.
| | • | Ensure that only authorised persons have access to hydraulic fluid.
| | • | Immediately seal disconnected leads and hoses and the connections to the assembly with blind plugs.
|
| |
WARNING!
| |
Risk of injury and poisoning working with hydraulic fluid under pressure!
Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. If any part of the hydraulic circuit has failed, a possibility of the system not depressurising can occur. Extra precaution is required in this event. If hydraulic fluid is swallowed, this can lead to poisoning symptoms such as headache, dizziness, nausea, vomiting, diarrhoea, cramps and unconsciousness.
Always wear skin protection cream, protective gloves and safety glasses when working on a potentially pressurised system.
| |
WARNING!
| |
Possible fluid spills from vehicle systems during repairs or maintenance.
Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours.
Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.
| |
Remove mount - Actuator - Front
| | | Care Point: | The suspension system must be depressurised before any work on the hydraulic system.
|
| | | 1. | Connect McLaren Diagnostic System, proceed to Diagnostic Toolbox within Chassis Control Unit (CCU).
| | | 2. | Access Sequences section.
| | | 3. | Carry out APMU Maintenance Start.
| | |
|

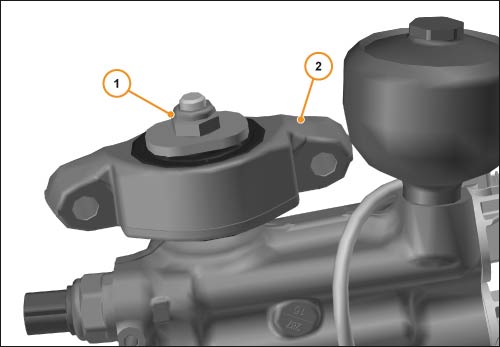

| 4. | | | | 5. | Remove top mount (2).
| | |
|

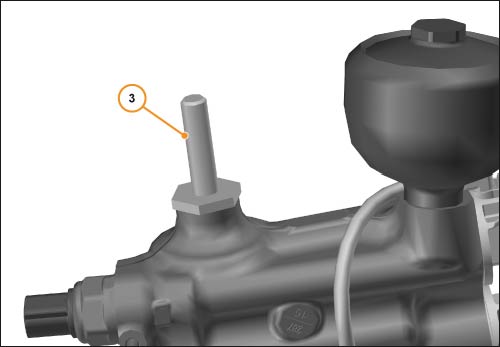

| 6. | Remove mount stem (3). 55 Nm
| | | 7. | Discard removed parts.
| | |
|
Install mount - Actuator - Front

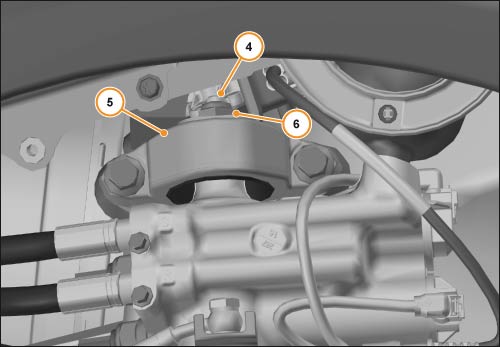

| 1. | Install replacement mount stem (4). 55 Nm
| | | | | Care Point: | Do not install replacement nut (6) at this stage.
|
| | | 2. | Install replacement top mount (5).
| | | | | Care Point: | The actuator must be partially installed to vehicle before replacement nut (6) is installed to align the replacement top mount (5) with the rear frame.
|
| Care Point: | Do not torque fixing.
|
| | | 3. | Install lower actuator fixing.
| | | | | Care Point: | Do not torque fixing.
|
| | | 4. | Install upper actuator fixings.
| | | | | Care Point: | Caution! Replacement nut (6) is only suitable for one use, Make sure correct alignment before applying torque.
|
| | | 5. | Install and torque replacement nut (6). 45 Nm
| | | 6. | | | | | | Care Point: | The procedure below must be claimed separately if you make a warranty claim.
|
| | | 7. | | | | 8. | Connect McLaren Diagnostic System, proceed to Diagnostic Toolbox within Chassis Control Unit (CCU).
| | | 9. | Access Sequences section.
| | | 10. | Carry out Kinetic Damping System Pressure Sensor Check.
| | | 11. | Check actuator for leaks.
| | | | | Care Point: | Safety Critical! Make sure no technicians are working on or underneath vehicle before proceeding.
|
| | | 12. | Check functionality of nose lift system.
| | | 13. | Install components in reverse order.
| | | 14. | Read out and clear error memory.
| | |
|
