Electrical / Electrical Systems / Rain and Light Sensor / DA-RM-07M002-11-001 - Remove/Install sensor - Rain/Light
Remove sensor - Rain/Light

Care Point:
Mirror cover trims clip into windscreen bracket individually.

1.

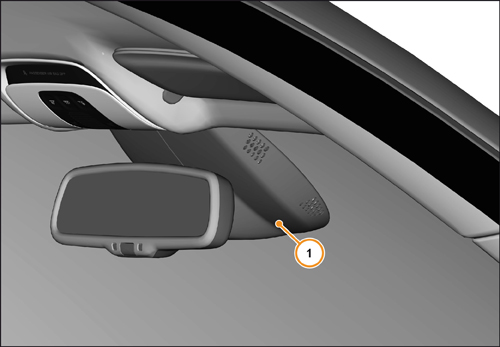

Remove right hand mirror trim (1).

2.

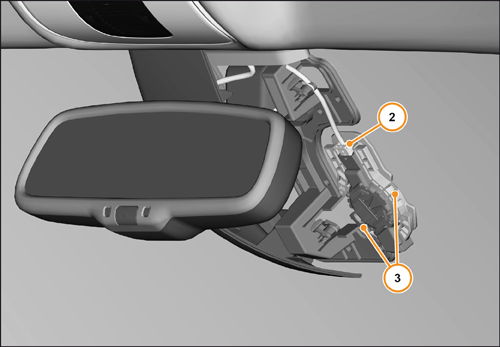

Disconnect electrical connector (2).

3.
Release clips and remove rain/light sensors (3).

Install sensor - Rain/Light
1.
Install components in reverse order.

2.
Read out and clear error memory.



   Note
