Preparation work
 WARNING!
| |
Risk of burning and fire when handling hot or glowing objects!
Unprotected contact with hot or glowing objects can cause severe burns to the skin and eyes. If glowing objects come into contact with water, hot steam or hot splashing water this can result in severe skin and eye burns. Severe and possibly permanent injuries can result if hot or glowing objects come into contact with unprotected skin or eyes. Fire can result if glowing objects come into contact with flammable materials or substances.
Wear protective clothing, safety glasses and heat resistant gloves.
| • | Avoid sparks and keep objects away from flammable materials and substances when handling glowing objects.
|
| |
WARNING!
| |
Possible fluid spills from vehicle systems during repairs or maintenance.
Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours.
Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.
| |
Remove hose - Oil tank - Oil feed
| | | Care Point: | When you remove the bolts discard and replace them with 00RA556. Refer to the Spare Parts Catalogue (SPC) for details.
|

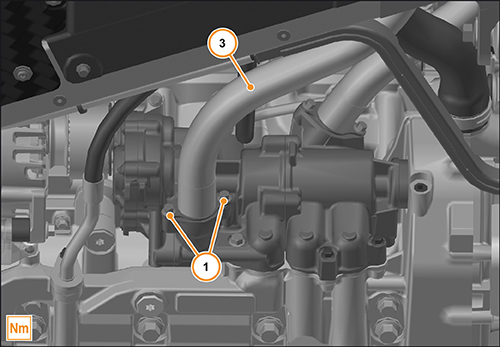

| | | 1. | | | | 2. | Detach hose (3) from the oil pump.
| | |
|
| | | Care Point: | When you remove the bolts discard and replace them with 00RA556. Refer to the Spare Parts Catalogue (SPC) for details.
|

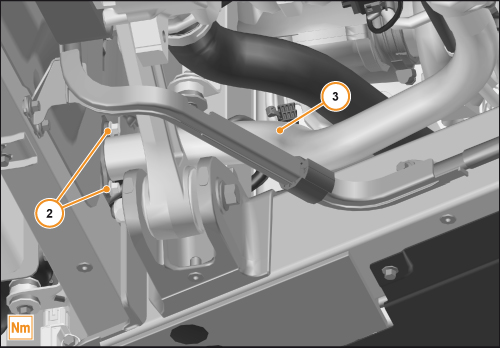

| | | 3. | | | | 4. | Detach hose (3) from the oil tank and remove.
| | |
|
Install hose - Oil tank - Oil feed

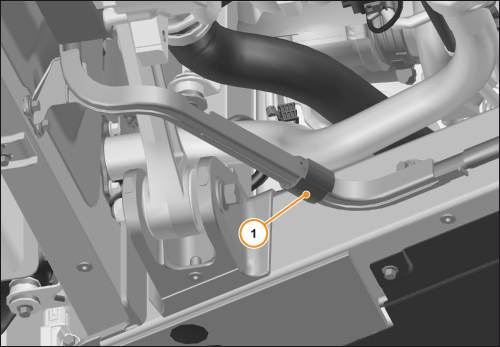

| 1. | Make sure rubber mount (1) is fitted to the starter motor wiring harness. Refer to the Spare Parts Catalogue (SPC) for part information if missing.
| | | 2. | Install components in reverse order.
| | |
|
