Preparation work
 WARNING!
| |
Risk of burning and fire when handling hot or glowing objects!
Unprotected contact with hot or glowing objects can cause severe burns to the skin and eyes. If glowing objects come into contact with water, hot steam or hot splashing water this can result in severe skin and eye burns. Severe and possibly permanent injuries can result if hot or glowing objects come into contact with unprotected skin or eyes. Fire can result if glowing objects come into contact with flammable materials or substances.
Wear protective clothing, safety glasses and heat resistant gloves.
| • | Avoid sparks and keep objects away from flammable materials and substances when handling glowing objects.
|
| |
WARNING!
| |
Possible fluid spills from vehicle systems during repairs or maintenance.
Risk of thermal incidents, slip hazards, corrosion of electrical components, failure of electrical or mechanical components or unwanted odours.
Always limit fluid spills and fully clean the spilled fluid after repairs or maintenance.
| |

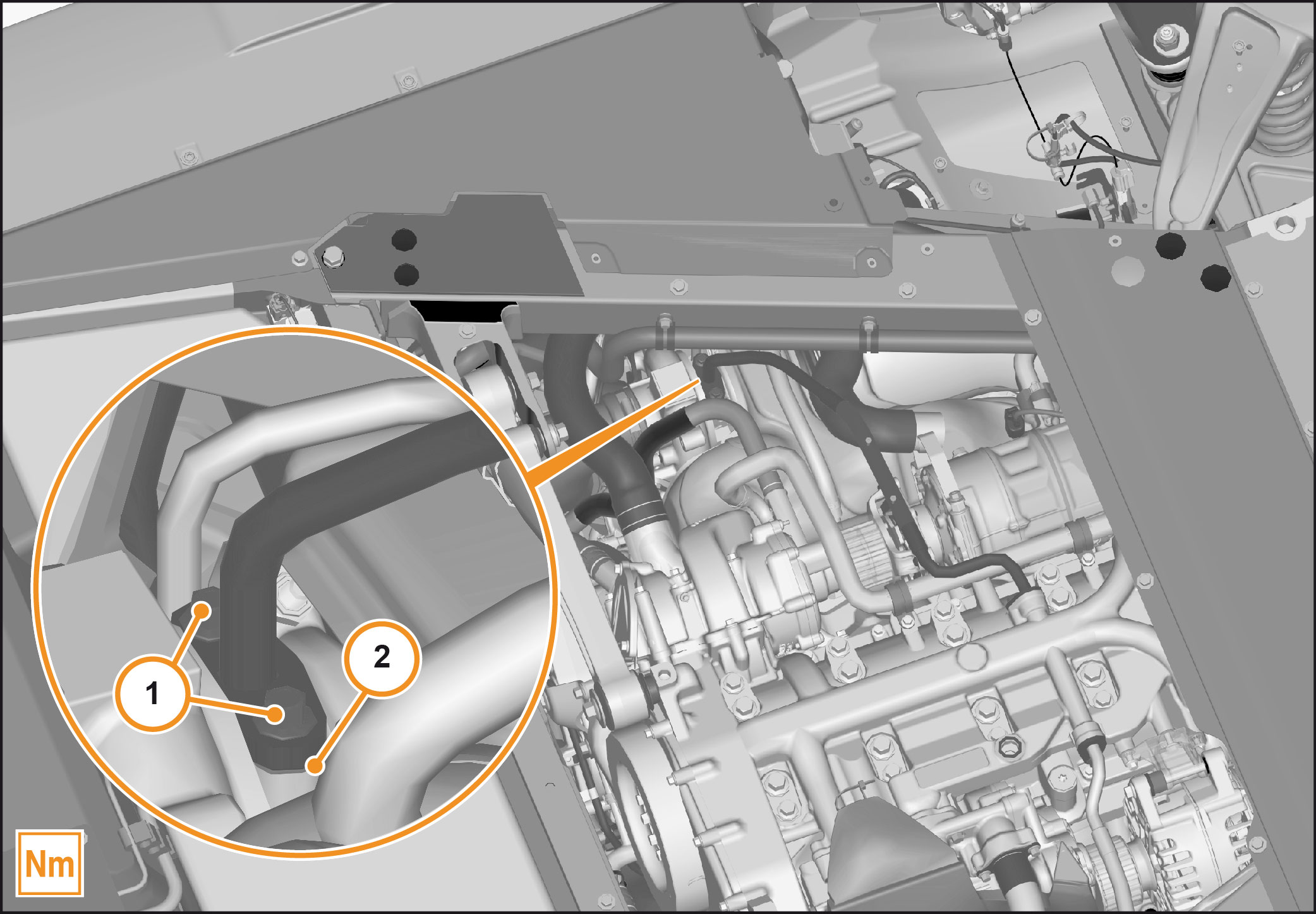

Remove hose - turbo charger - Oil return
| 1. | | | | 2. | Remove paper gasket (2).
| | |
|
| 3. | | | | | | Care Point: | When removing turbo charger oil return hose, catch excess oil in suitable container.
|

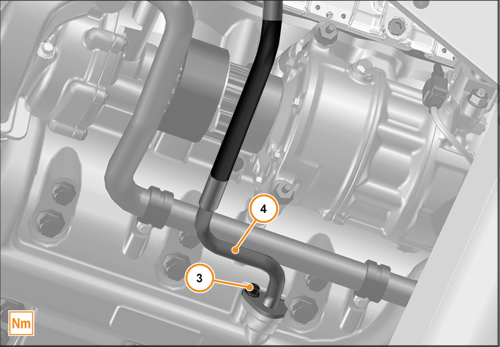

| | | 4. | Remove oil hose (4).
| | |
|
Install hose - turbo charger - Oil return
| | | Care Point: | Clean sealing face of old gasket area.
Replace oil with the exact quantity that was removed.
Replace paper gasket.
Replacement hoses come with a new paper gasket and O-ring seal included.
|
| | | 1. | Install components in reverse order.
| | | 2. | Check engine for leaks.
| | | 3. | | | |
