720S

Wiring diagrams

Power and Ground Distribution

DA-WD-M00101-01 - GS A-pillars

DA-WD-M00101-02 - GS B-Pillars S1

DA-WD-M00101-03 - GS B-Pillars S2

DA-WD-M00101-04 - GS Front Stowage S1

DA-WD-M00101-05 - GS Front Stowage S2

DA-WD-M00101-06 - GS Ground Straps

DA-WD-M00101-07 - GS Rear Left Fenders S1

DA-WD-M00101-08 GS - Rear Left Fenders S2

DA-WD-M00101-09 - GS Rear Right Fenders

DA-WD-M00101-10 - KL15

DA-WD-M00101-11 - KL15C

DA-WD-M00101-12 - PD Starting & Charging

DA-WD-M00101-13 - Cigar Lighter & Aux Power Socket

DA-WD-M00101-14 Ground Points Layout

Special advice

Tools/Equipment

Fluids, lubricants, adhesive

Torque settings

Repair time

Instructions

Content

Description

Legend

Location

Dataflow

Diagram

Location

Diagram

Electrical / Wiring Harness / Power and Ground Distribution / DA-WD-M00101-14 Ground Points Layout

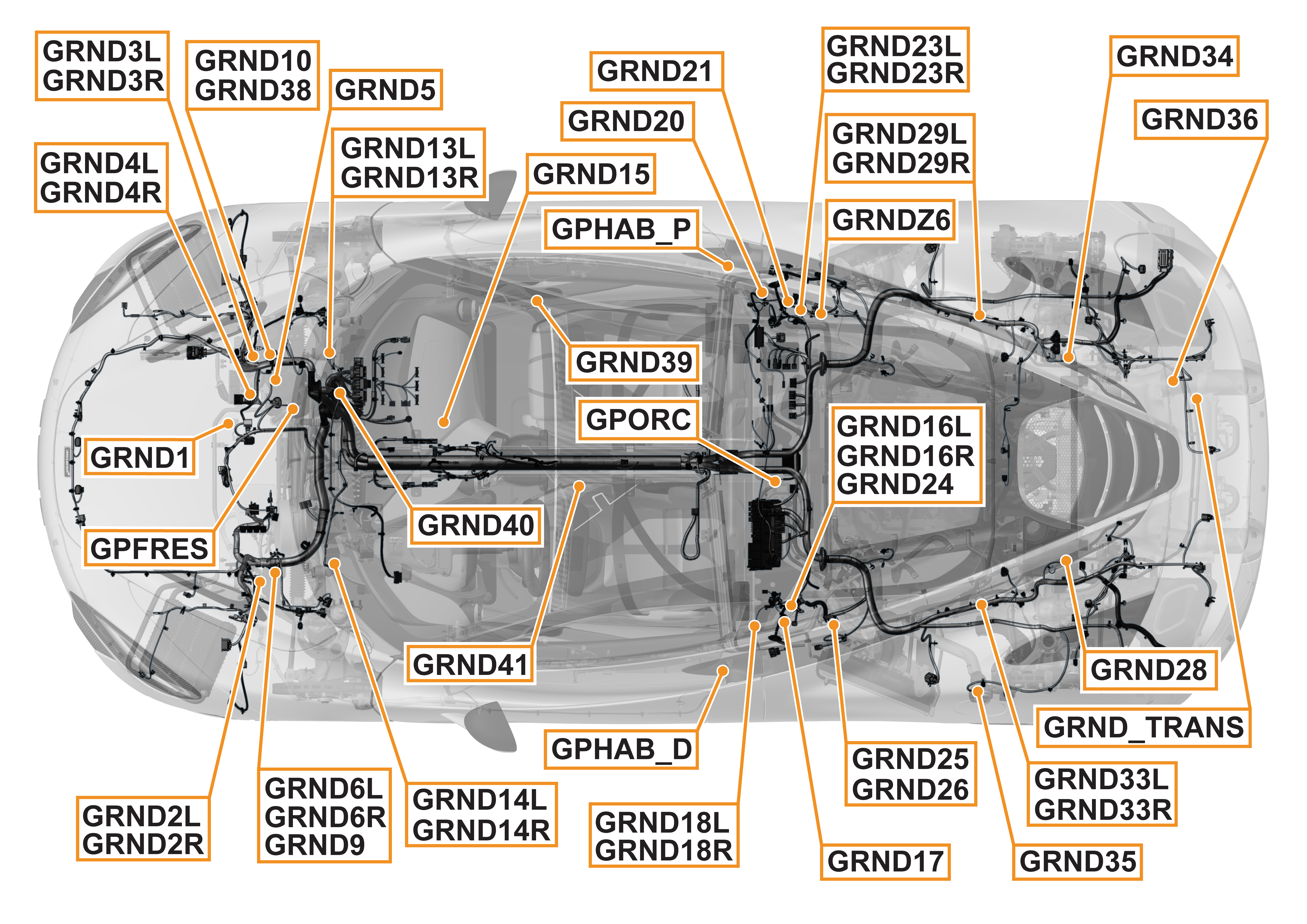

DA-WD-M00101-14 Ground Points Layout


GRND28_14CGRND28_14C	Ground - Rear Left Fender	PIN	Location
GRND33L_14C	Ground - Rear Frame	PIN	Location
GRND33R_14C	Ground - Rear Frame	PIN	Location
GRND35_14C	Ground - Fuel Filler	PIN	Location
GRND17_14C	Ground - Upper Electric City Left M9	PIN	Location
GRND26_14CGRND26_14C	Ground - Rear Fender Arm Left	PIN	Location
GRND25_14CGRND25_14C	Ground - Rear Fender Arm Left	PIN	Location
GRND24_14C	Ground - Rear Left Fender - Fuel Tank Case	PIN	Location
GRND16R_14C	Ground - B-Pillar	PIN	Location
GRND16L_14C	Ground - B-Pillar	PIN	Location
GRND36_14C	Ground - Rear Right Fenders	PIN	Location
GRND34_14C	Ground - Rear Right Fenders	PIN	Location
GRNDZ6_14C	Ground - Rear Right Fenders	PIN	Location
GRND29R_14C	Ground - Rear Frame Right Hand	PIN	Location
GRND29L_14C	Ground - Rear Right Fenders	PIN	Location
GRND23R_14C	Ground - B-Pillar	PIN	Location
GRND23L_14C	Ground - B-Pillar	PIN	Location
GPORC_14C	Ground - ORC	PIN	Location
GRND39_14C	Ground - A Pillar	PIN	Location
GRND21_14C	Ground - Audio Amplifier - High line	PIN	Location
GRND20_14C	Ground - Rear Glass Coupling	PIN	Location
GPHAB_P_14C	Ground - Passenger Door	PIN	Location
GRND15_14C	Ground - Cross Car Beam	PIN	Location
GRND40_14C	Ground - A Pillar	PIN	Location
GRND18L_14C	Ground - Passenger Seat / Cigar	PIN	Location
GPHAB_D_14C	Ground - Driver Door	PIN	Location
GRND41_14C	Ground - A Pillar	PIN	Location
GRND14R_14C	Ground - Left Hand Foot Well A-Pillar Ground Point	PIN	Location
GRND14L_14C	Ground - Left Hand Foot Well A-Pillar Ground Point	PIN	Location
GRND9_14C	Ground - Front Stowage S3	PIN	Location
GRND6R_14C	Ground - Front Left Stowage Bin Casting	PIN	Location
GRND6L_14C	Ground - Front Left Stowage Bin Casting	PIN	Location
GRND2R_14CGRND2R_14C	Ground - Front Left Stowage CastingGround - Front Left Stowage Casting	PIN	LocationLocation
GRND2L_14CGRND2L_14C	Ground - Front Left Stowage CastingGround - Front Left Stowage Casting	PIN	LocationLocation
GPFRES_14C	Ground - Foot Rest	PIN	Location
GRND1_14C	Ground - Battery - Front Subframe Base	PIN	Location
GRND13R_14C	Ground - A Pillar Footwell Right Hand Ground Point	PIN	Location
GRND13L_14C	Ground - A Pillar - Footwell - Right Hand	PIN	Location
GRND5_14C	Ground - Front Stowage S3	PIN	Location
GRND38_14C	Ground - Front Stowage S3	PIN	Location
GRND10_14C	Ground - Front Subframe - Right Hand	PIN	Location
GRND4R_14C	Ground - Front Right Under Esp Connector	PIN	Location
GRND4L_14C	Ground - Front Right Under Esp Connector	PIN	Location
GRND3R_14C	Ground - Front Right Stowage Casting	PIN	Location
GRND3L_14C	Ground - Front Right Stowage Casting	PIN	Location
