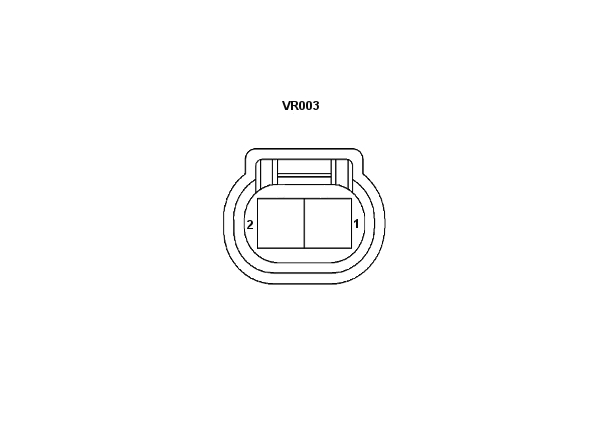

Pin
Powertrain / Engine / Engine Control Unit / DA-WD-F00102-03 - Engine Control Module - EN S1

Pos No
Name
1
Thermostat 1 Pulse Width Modulation (PWM) control line
2
Ground


   Note
