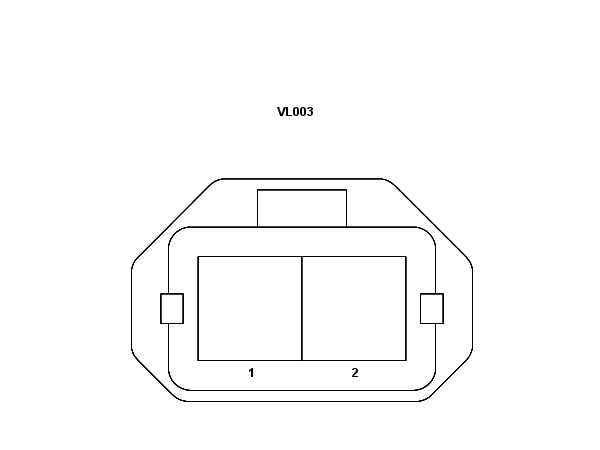

Pin
Powertrain / Engine / Engine Control Unit / DA-WD-F00102-03 - Engine Control Module - EN S1

Pos No
Name
1
Coolant temperature sensor1 input
2
Sensor ground


   Note
