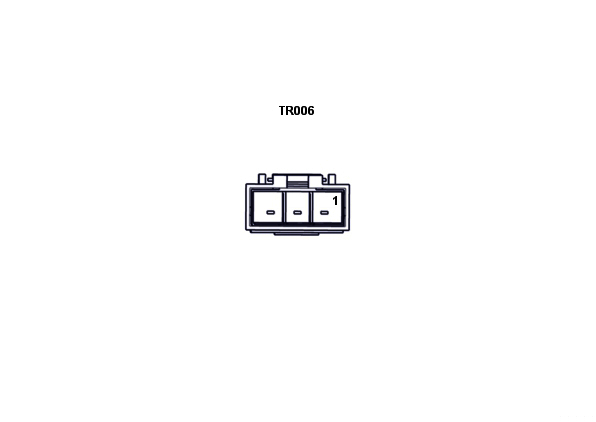

Powertrain / Transmission / Powertrain and Chassis Control Unit / DA-WD-G00102-01 - Transmission Control Unit S2

Pos No
Name
1
Ground
2
Signal
3
+5V Supply


   Note
