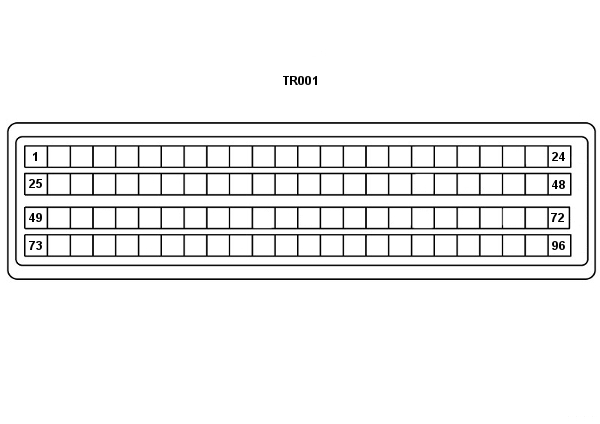

1
| Odd gear select solenoid 1 (Low Side) |
2
| Clutch 1 control (Low Side) |
3
| Clutch 1 cut off solenoid (Low Side) |
4
| Odd gear select solenoid 2 (Low Side) |
5
| Clutch 1 cooling (Low Side) |
6
| Airbrake enable solenoid (Low Side) |
7
| Spare |
8
| Airbrake control solenoid 1 (Low Side) |
9
| Spare |
10
| Line pressure control (Low Side) |
11
| Gear actuator multiplexer solenoid (Low Side) |
12
| Spare |
13
| Even gear select solenoid 1 (Low Side) |
14
| Clutch 2 cut off solenoid (Low Side) |
15
| Clutch 2 cooling (Low Side) |
16
| Clutch 2 control (Low Side) |
17
| Even gear select solenoid 2 (Low Side) |
18
| Ground Airbrake Position Sensor1 LH |
19
| Spare |
20
| Exhaust valve right signal |
21
| Cranking interlock switch |
22
| Airbrake position sensor left ground |
23
| Exhaust valve solenoid 2 line A |
24
| Exhaust valve solenoid 2 line B |
25
| Odd gear select solenoid 1 (High Side) |
26
| Clutch 1 control (High Side) |
27
| Clutch 1 cut off solenoid (High Side) |
28
| Odd gear select solenoid 2 (High Side) |
29
| Clutch 1 cooling (High Side) |
30
| Airbrake enable solenoid (High Side) |
31
| Spare |
32
| Airbrake control solenoid 1 (High Side) |
33
| |
34
| Line pressure control (High Side) |
35
| Gear actuator multiplexer solenoid (High Side) |
36
| Spare |
37
| Even gear select solenoid 1 (High Side) |
38
| Clutch 2 cut off solenoid (High Side) |
39
| Clutch 2 cooling (High Side) |
40
| Clutch 2 control (High Side) |
41
| Even gear select solenoid 2 (High Side) |
42
| Exhaust valve left ground |
43
| Clutch 1 control pressure signal |
44
| Vacuum pump pressure sensor/Exhaust valve right supply |
45
| Airbrake position sensor left signal |
46
| Airbrake position sensor left supply |
47
| Exhaust valve solenoid 1 line A |
48
| Exhaust valve solenoid 1 line B |
49
| On board diagnostic 2 CAN B + |
50
| Odd gear shaft speed signal |
51
| Engine shaft speed signal |
52
| Spare |
53
| Cooler exit oil temperature ground |
54
| Spare |
55
| Spare |
56
| Bulk oil temperature ground |
57
| Clutch cooling oil temperature ground |
58
| Gear position inline ground - odd |
59
| Spare |
60
| Ground Wastegate RH Position Return Sensor |
61
| Spare |
62
| Spare |
63
| Gear position inline ground - even |
64
| Vacuum pump pressure sensor ground |
65
| Spare |
66
| +V Supply Exhaust Valve Left |
67
| Ground Airbrake Position Sensor RH |
68
| Ground Wastegate LH Position Sensor |
69
| Ground Clutch 2 Control Pressure/Clutch Cooling Pressure |
70
| 1A Wastegate RH Line A |
71
| 1B Wastegate RH Line B |
72
| 2B Wastegate LH Line B |
73
| CAN B- Application CAN - XCP |
74
| Output shaft speed signal |
75
| Even gear shaft speed signal |
76
| Clutch 1 control pressure/Transmission line pressure supply |
77
| Cooler exit oil temperature signal |
78
| Spare |
79
| Spare |
80
| Bulk oil temperature signal |
81
| Clutch cooling oil temperature signal |
82
| Gear position inline supply- odd |
83
| Gear position inline sensor - 1 & 3 |
84
| Gear position inline sensor - 5 & 7 |
85
| Gear position inline sensor - R & 4 |
86
| Gear position inline sensor - 2 & 6 |
87
| Gear position inline supply - even |
88
| Vacuum pump pressure sensor signal |
89
| Clutch cooling pressure signal |
90
| Exhaust valve left signal |
91
| Transmission line pressure signal |
92
| Clutch 2 control pressure signal |
93
| Clutch 2 control pressure/clutch cooling pressure supply |
94
| Spare |
95
| Airbrake position sensor right supply |
96
| Airbrake position sensor right signal |
