Pin
Electrical / Infotainment / ADI ECU System / DA-WD-M02104-02 - Infotainment ECU S2

Pos No
Name
1

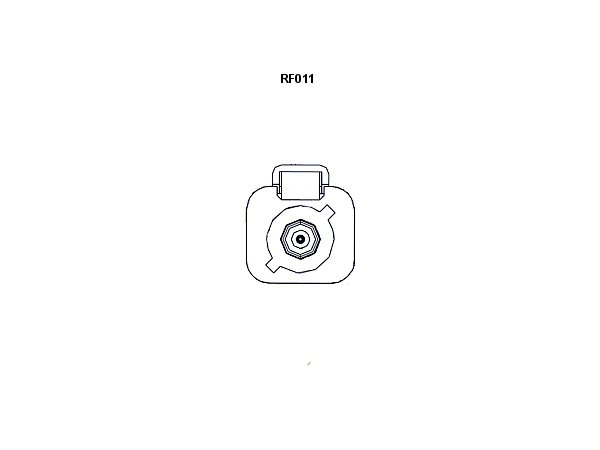

FM2 Out
SCR
Ground (shield)


   Note
